16 Ports FTTH Fiber Access Terminal Fast Connector Box
This fiber optic distribution box provides secure splicing, storage, and distribution of up to 8 or 16 fiber cores, ensure reliable connectivity for FTTH(Fiber-to-the-Home), 5G networks, and industrial applications. With an IP68-rated waterproof and dust-proof design, it protects critical fiber connections from moisture, tem- perature extremes, and mechanical stress. modular structure supports easy fiber management, make it ideal for aerial, underground, or pole-mounted installations.
Features
- Total Enclosed Protection:
Ensures reliable, long-term fiber protection with a fully enclosed, waterproof, and dustproof structure.
- High-Quality PC+ABS Construction:
Built for durability, resistant to environmental wear, and suitable for both indoor and outdoor fiber cable distribution box
- Integrated Cable Management:
Manages feeder and drop cables, fiber splicing, and distribution while keeping cable paths separate for optimal organization and performance.
- Micro PLC Splitter Installation:
Compatible with micro-type PLC splitters, allowing for flexible network configurations.
- Flip-Up Distribution Panel:
Designed for easy access to the feeder cable and components, simplifying fiber optic termination box Versatile Mounting Options:
Offers both wall-mounted and pole-mounted installation for flexible deployment in various environments, supporting fiber distribution terminal
Specification
| Parameter | Specification |
| Material | PC+ABS, anti-aging, wet-proof |
| Protection Rating | IP65 – Waterproof and Dustproof |
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | ≤85% (at +30°C) |
| Atmospheric Pressure | 70KPa to 106KPa |
| Insertion Loss | ≤ 0.15dB |
| Return Loss (UPC/APC) | ≥50 dB (UPC), ≥60 dB (APC) |
| Thunder-Proof Resistance | Insulation: ≥2×10⁴ MΩ/500V; Voltage: ≥3000V (DC) |

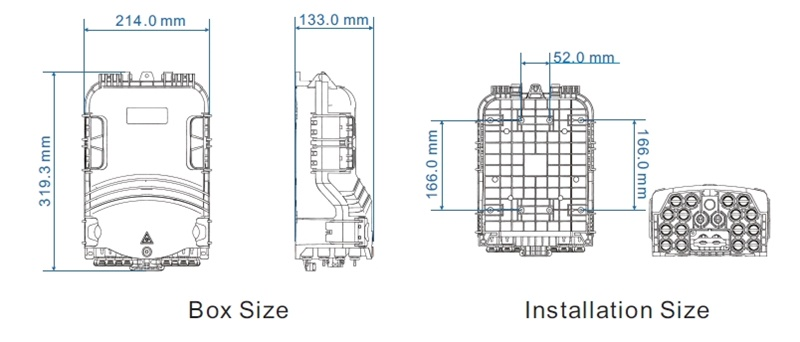

| Dimensions | 319.3 x 214 x 133 mm |
| Max Capacity | 48 fibers |
| Cable Entry Diameter | 8-14mm |
| Branch Hole Diameter | Maximum 16mm |
| Reinforced Adapter | 16 pcs SC/UPC or SC/APC |
| Installation | Pole mounting,Strand mounting,Wall-mounting |
Application
- FTTx Communication Networks：
A reliable termination and distribution solution for fiber-to-the-home (FTTH) networks, facilitating fiber access for residential and commercial users.
- Commercial Buildings:
Suitable for high-density fiber installations, such as in fiber distribution boxes and optical fiber terminal boxes for structured cabling in business complexes.
- Outdoor Fiber Networks:
With IP65-rated protection, it’s ideal for exposed environments, ensuring connectivity in outdoor setups, including fiber optic cable terminal box
