2.0×5.0mm SC UPC to SC UPC FTTH Drop Cable Patch Cord
Features
- Good durability
- Good exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior Quality Standard PC/UPC/APC Polishing
- Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

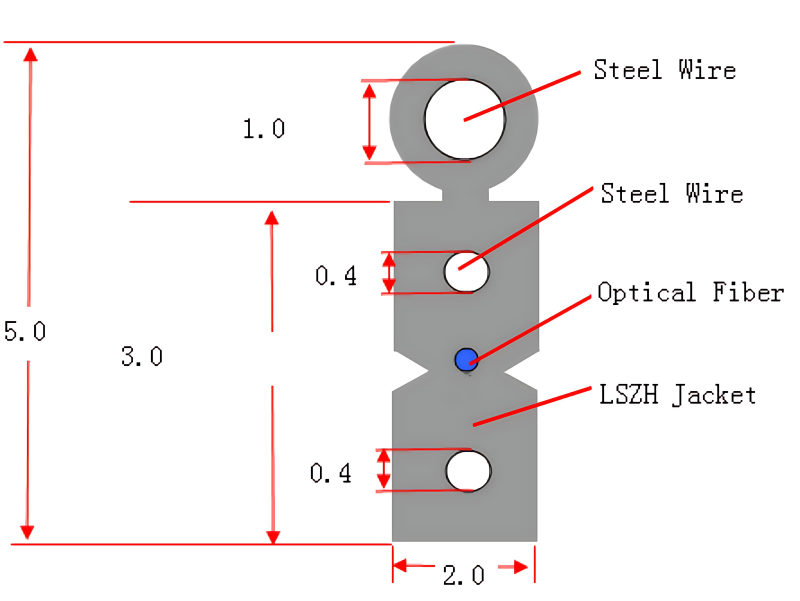

Cable Structure

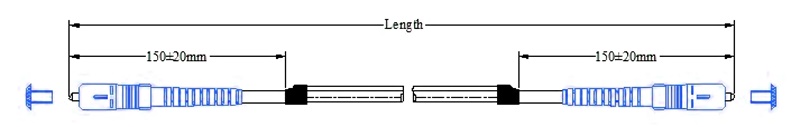

Dimensional Diagrams
FTTH Drop Cable Patch Cord 2.0*5.0mm Cable (OUT DOOR)
Cable Parameters
|
Cable Count (F) |
Out sheath Diameter （MM) |
Weight （KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature （℃） |
|||
|
short term |
long term |
short term |
long term |
short term |
long term |
||||
|
1 |
(2.0±0.2)×(5.0±0.3) |
21.7 |
400 |
200 |
2200 |
1000 |
20D |
10D |
-20 ~ +60 |
Patch Cord Versions
|
Jumper tolerance requirement |
|
|
Overall length (L) （M） |
length of tolerance （CM） |
|
0＜L≤20 |
+10/-0 |
|
20＜L≤40 |
+15/-0 |
|
L＞40 |
+0.5%L/-0 |
Optical Characteristics
|
Item |
Parameter |
Reference |
|||
|
Single mode |
Multi mode |
||||
|
Standard |
Elite |
Standard |
Elite |
/ |
|
|
Test the wavelength |
1310-1550nm |
850-1300nm |
/ |
||
|
Insertion loss（Typical） |
≤0.30dB |
≤0.20dB |
≤0.5dB |
≤0.20dB |
IEC 61300-3-34 |
|
Insertion loss（Max） |
≤0.75dB |
≤0.35dB |
≤0.75dB |
≤0.35dB |
|
|
Return loss |
≥50dB (PC)/ ≥60dB (APC) |
≥55dB (PC)/ ≥65dB (APC) |
≥30dB(PC) |
≥30dB(PC) |
IEC 61300-3-6 |
|
Working temperature |
-20℃to +70℃ |
/ |
|||
|
Storage temperature |
-40℃to +85℃ |
/ |
|||
Technical Specifications
|
Project |
Values |
||
|
Insertion loss |
≤0.2dB |
||
|
IL change absolute value |
low temperature |
Temperature: -40℃； Duration: 168 h |
≤0.2dB |
|
high temperature |
Temperature: 85℃ Duration: 168 h Temperature change rate: 1℃/min |
≤0.2dB |
|
|
Hot and humid |
Temperature: 40℃ Humidity: 90%~95% Duration: 168h Temperature change rate: 1℃/min |
≤0.2dB |
|
|
Temperature cycle
|
Temperature: -40℃ to + 85℃； Duration: 168h； Cycle times:21； Temperature change rate: 1℃/min |
≤0.2dB |
|
|
repeatability |
Insertion pull times:10 |
≤0.2dB |
|
|
Mechanism durability |
Insertion times: 500 cycles |
≤0.2dB |
|
|
Tensile strength Of coupling mechanism |
50N/10 Minute |
≤0.2dB |
|
|
pull-out force |
≤19.6.N |
||
|
Flame resistance |
UL94-V0 |
||
|
work temperature |
-25℃～+75℃ |
||
|
storage temperature |
-40℃～+85℃ |
||

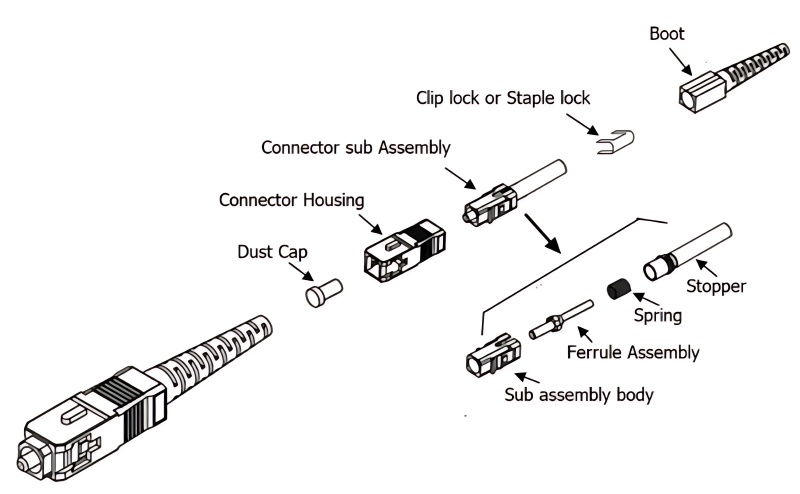

Connector Component
|
parts Name |
Requirement |
Mark |
|
Connector type |
-Click On type -Groove of Stopper shall support drop wire flat cable (2 x 3 mm) |
|
|
Connector housing - Plastic material
|
-PBT material with Frame Retardant UL94-V0 or equivalent Plastic Material |
Frame Retardant UL94-V0.
|
|
Connector sub assembly and Clip lock or Staple lock
|
- Sub assembly body. - Ferrule assembly with flange. - Spring - Stopper - Clip lock or Staple lock |
|
|
Connector sub assemble and Clip lock or Staple lock - Plastic material - Metallic material |
- PBT material with Frame Retardant UL94-V0 or equivalent Plastic Material. - Stainless Steel 300 series or better |
Frame Retardant UL94-V0.
|
|
Ferrule assembly with flange
|
- Zirconia Ceramic. - Cone ferrule or Step ferrule |
|
|
Boot. - Plastic material
|
-PBT material with Frame Retardant UL94-V0 or equivalent Plastic Material |
Application
- Telecom Net
- Local Ring Net
- Optical Fiber Sensor
- Optical Fiber Test Equipment
- Optical Fiber Communication System
- FTTH,LAN,PON & Optical CATV.
