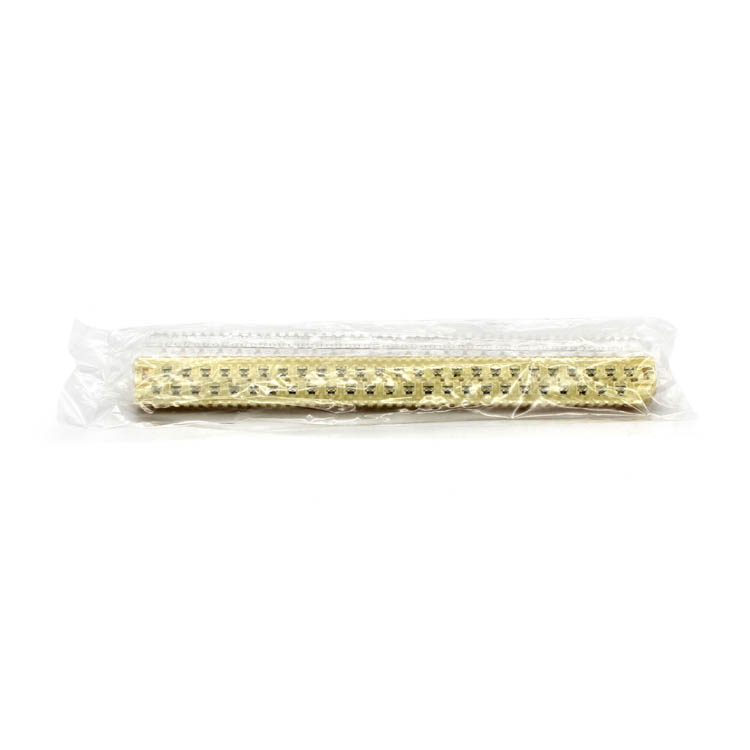

25-Pair Splicing Module (with Gel)

Short Description:

25-pair Communication Cable Connecting Module is used to connect all plastic communication cables (diameter 0.32 – 0.65mm) through direct connection, bridge connection and multiple connection.


  • Model: DW-4000G

    • Product Detail

    Product Tags





    Specifications
    Max insulation diameter (mm) 1.65
    Cable style and wire diameter 0.65-0.32mm(22-28AWG)
    Environment characteristic
    Environment chaStorage Temperature Range -40℃~+120℃
    Operating Temperature Range -30℃~+80℃
    Relative Humidity <90%(at20℃)
    Atemospheric  Pressure 70KPa~106KPa
    Mechanical Performance
    Plastic Housing PC (UL 94v-0)
    Contacts Tinned Phosphor Bronze
    Cutting blades leftover cable Stainless steel
    Wire Insertion Force 45N Typical
    Wire Pull out Force 40N Typical
    Breaking strength or slip conductor > 75% Wire breaking strength
    Use Times >100
    Electrical Performance
    Insulation Resistance R≥10000M Ohm
    Contact Resistance The vary of the contact resistance ≤1m Ohm
    Dielectric Strength 2000V  DC 60s can't spark over and haven't fly arc
    Constant Current 5KA 8/20u Sec
    Surge Current 10KA 8/20u Sec
