FTTA 10 Cores Pre-Connected Fiber Optic CTO Box

Short Description:

Dowell SSC2811-SM Pre-Connected Fiber Optic CTO Boxs is a mechanically sealed dome-style Fast Connect closure used at access points of the Fttx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters.

Model: DW-SSC2811

Dimensions: 200x168x76mm

Protection Rating: IP65

Max Capacity: 10 Core

Material: PC+ABS or PP+GF

Resisting Impact: UL94-HB

Resisting Impact: Ik09

Send email to us

Product Detail

Product Tags

It used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is Corning adapter or Huawei Fast connector, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple, easy to install, and no special tools are required.

Features

Pre-Connected Design:

No need to open the box or splice fibers during installation. Hardened adapters are used on all ports, ensuring durable and secure connections even in challenging environments.

High Capacity and Flexibility

Equipped with 10 ports, meeting requirement of small to medium-sized network installations. Connecting 1 x ISP cable, 1 x OSP cable, and 8 x drop cables,for FTTx network systems.

Integrated Functionality

Combines fiber splicing, splitting, storage, and cable management within a single, robust enclosure. Applicable to various scenarios, including over ground, underground, manhole/hand hole.

Durable and Waterproof Enclosure

IP68-rated waterproof protection, ensuring performance in harsh weather conditions. Pole mounting, flexibility in installation and ease of access for maintenance.

Specification

Model	SSC2811-SM-9U	SSC2811-SM-8
DistributionCapacity	1(Input)+1(Extension)+8(Drop)	1(Input)+8(Drop)
OpticalCableInlet	1PCSSC/APChardenedadapter(red)
OpticalCableOutlet	1PCS SC/APC hardened adapter (blue) 8 PCS SC/APC hardened adapter (black)	8 PCS SC/APC hardened adapter (black)
SplitterCapacity	1PCS1:9SPL9105	1PCS1:8SPL9105

Parameter	Specification

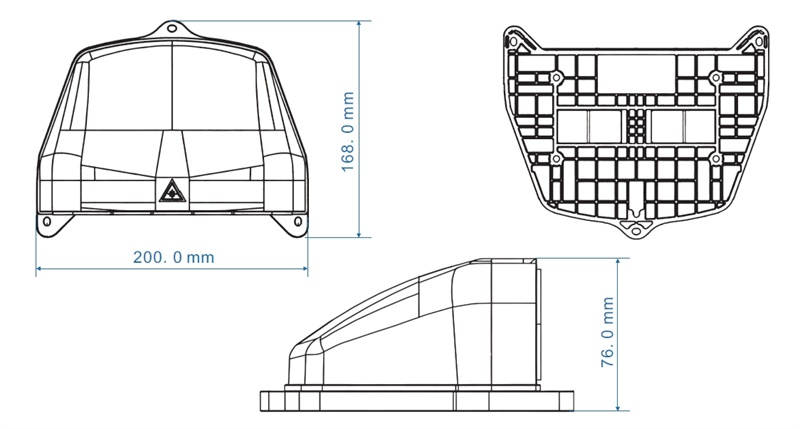

Dimensions(HxWxD)	200x168x76mm
ProtectionRating	IP65–WaterproofandDustproof
ConnectorAttenuation(Insert,Swap,Repeat)	≤0.3dB
ConnectorReturnLoss	APC≥60dB,UPC≥50dB, PC≥40dB
OperatingTemperature	-40℃~+60℃
ConnectorInsertionandRemovalDurabilityLife	＞1,000times
MaxCapacity	10Core
RelativeHumidity	≤93%(+40℃)
AtmosphericPressure	70~106kPa
Installation	Pole,Walloraerialcablemounting
Material	PC+ABSorPP+GF
ApplicationScenario	Overground,Underground,Handhole
ResistingImpact	Ik09
Flame-retardantrating	UL94-HB

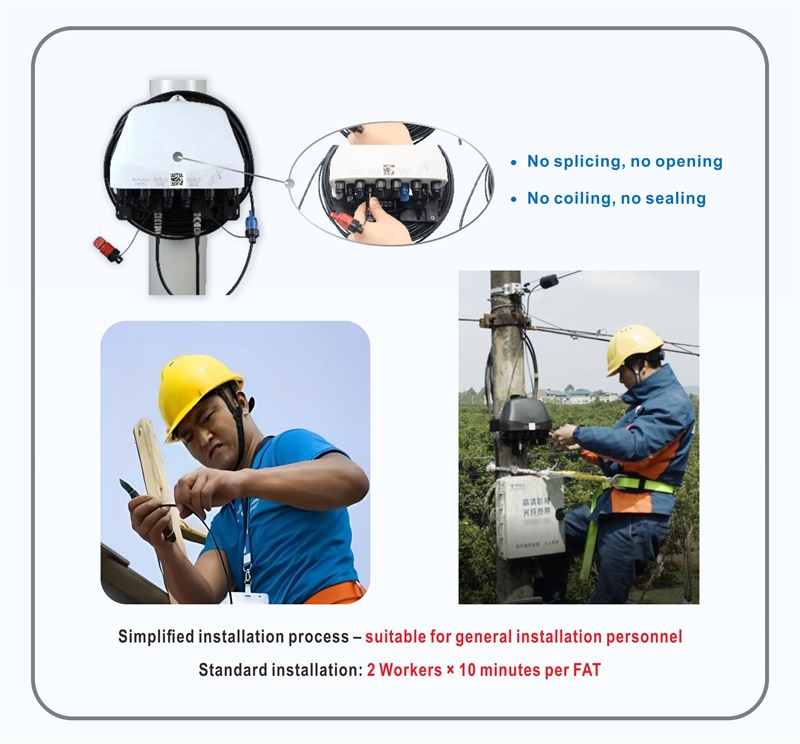

Outdoor Scenario

Building Scenario

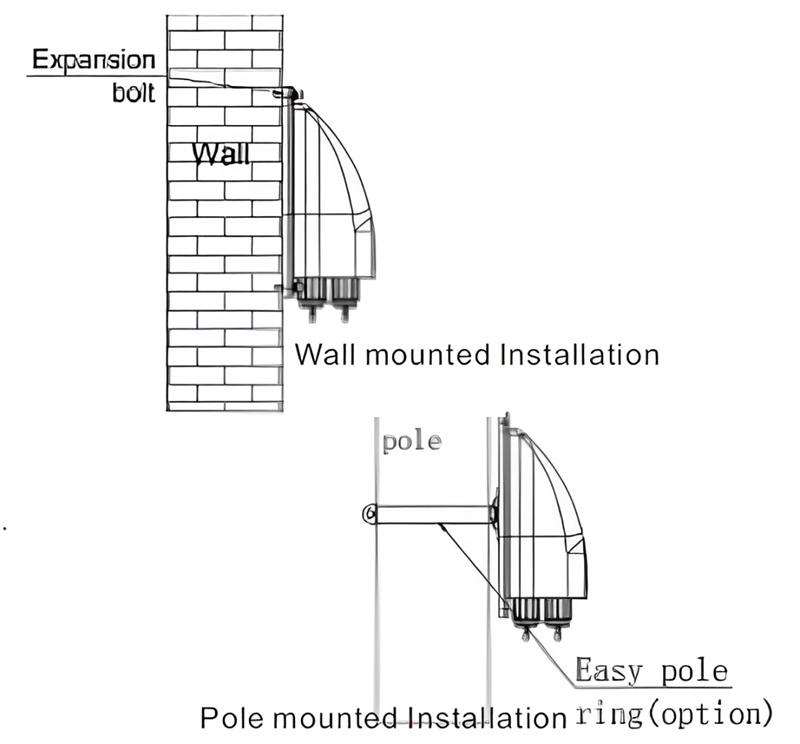

Installation

Application

Cooperative Clients
