How Can Double Suspension Clamp Sets Support Cables Over Wide Gaps?

How Can Double Suspension Clamp Sets Support Cables Over Wide Gaps

Double Suspension Clamp Set swoops in like a superhero for cables stretched over wide gaps. They use two strong grips to hold cables steady, spreading out the weight and keeping sag at bay. Reliable cable support keeps workers safe and ensures cables last longer, even in tough conditions.

Key Takeaways

  • Double suspension clamp sets hold cables firmly with two strong grips, reducing sag and spreading weight evenly over wide gaps.
  • These clamps use tough, rust-resistant materials and vibration pads to protect cables from damage and harsh weather.
  • They improve safety and durability for cables crossing difficult terrain, making installation and maintenance easier for workers.

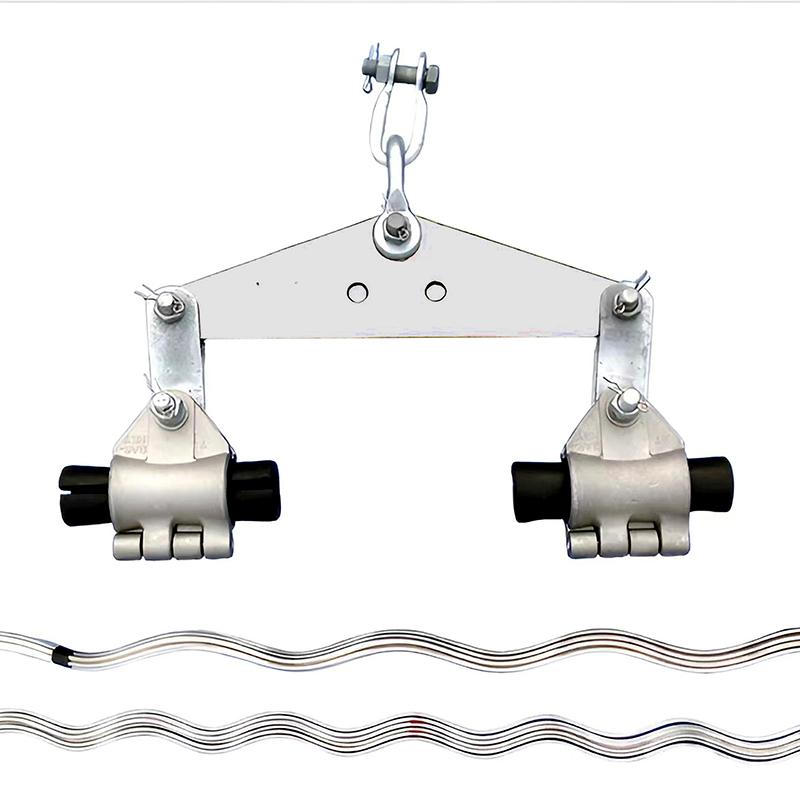

Double Suspension Clamp Set Mechanisms and Features

Double Suspension Clamp Set Mechanisms and Features

Dual-Point Support and Load Distribution

The Double Suspension Clamp Set grabs cables with two strong arms, like a champion weightlifter holding a barbell. This dual-point grip spreads the cable’s weight across a wider area. The cable stays balanced, even when it stretches over a deep valley or a wide river. Two points of support mean less sag and fewer worries about the cable snapping or slipping. The clamp set keeps cables steady, even when the wind howls or the load shifts.

Key Structural Features and Materials

Engineers build these clamp sets with tough materials. Aluminum alloy, hot-dip galvanized steel, and stainless steel all play a part. These metals fight off rust and stand up to wild weather. Some clamps use helical rods and rubber pads to protect the cable from shaking and wearing out. The large contact area hugs the cable gently, spreading out the pressure. This design keeps the cable safe from sharp bends and rough spots. The table below shows some common materials and their superpowers:

Material Superpower
Aluminum Alloy Lightweight, resists corrosion
Galvanized Steel Strong, fights rust
Stainless Steel Tough, handles harsh environments
Rubber Pads Absorbs shock, reduces vibration

Mechanical Advantages for Wide-Span Applications

The Double Suspension Clamp Set shines when the gap gets wide. It holds cables steady over long distances, even when the span stretches past 800 meters. Two fulcrum points mean the cable can handle big angles and heavy loads. The clamp’s layered design—metal, rubber, and more—gives it extra strength and flexibility. It spreads out stress, cuts down on wear, and keeps cables working safely for years. This makes it the hero for tricky jobs like crossing rivers, deep valleys, or steep hills.

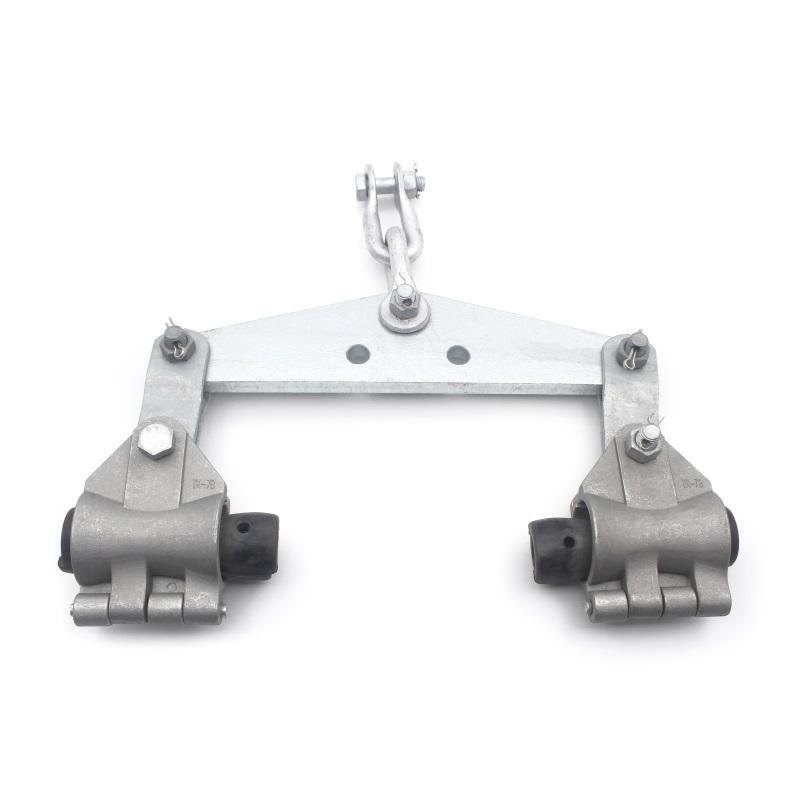

Solving Cable Sag and Wide-Span Challenges with Double Suspension Clamp Set

Solving Cable Sag and Wide-Span Challenges with Double Suspension Clamp Set

Preventing Sag and Reducing Mechanical Stress

Cable sag looks like a tired jump rope drooping between two poles. The Double Suspension Clamp Set steps in like a coach, lifting the cable and keeping it tight. Two suspension points share the load, so the cable does not stretch or droop. The clamp’s wide grip spreads out the pressure, making sure the cable stays strong. Rubber pads and vibration dampers act like cushions, absorbing shocks from wind and storms. The cable feels less stress and avoids bending or snapping. Engineers cheer when they see cables standing tall, even over rivers and valleys.

Enhancing Safety in Challenging Environments

Safety matters most when cables cross wild terrain. Deep valleys, steep hills, and windy plains test every cable’s strength. The Double Suspension Clamp Set holds cables steady, even when the weather gets wild. Secure locking mechanisms keep cables from slipping or swinging. The clamp’s tough materials fight off rust and damage, so the cable stays safe year after year. Workers trust these clamps to protect fiber optic lines in places where danger lurks. The clamp set’s design helps prevent accidents and keeps the network running smoothly.

Tip: Always check the clamp’s grip before finishing the job. A firm hold means fewer worries down the road!

Suitability for Various Cable Types and Conditions

Not every cable fits every clamp, but the Double Suspension Clamp Set plays well with many types. Here are the cables that work best:

  • OPGW cables (standard and compacted)
  • ADSS cables

These clamps use strong metals and smart designs to handle tough conditions. Vibration dampers protect fiber optic networks from shaking and damage. Easy installation saves time and money, making life easier for workers. The clamp set boosts durability and keeps power and telecom lines stable. Rain, snow, or blazing sun—these clamps keep cables working at their best.

Installation, Maintenance, and Comparison of Double Suspension Clamp Set

Installation Tips for Wide Gaps

Installing a Double Suspension Clamp Set feels like building a bridge for superheroes. Workers first check the cable’s path and measure the gap. They lift the clamp set onto the pole or tower. Each arm of the clamp hugs the cable, making sure it sits in the right spot. Bolts get tightened, but not too much—nobody wants a squished cable! A quick shake test tells if the clamp holds steady. For extra-long spans, workers double-check every connection. Safety helmets and gloves turn every installer into a cable champion.

Tip: Always follow the manufacturer’s instructions for a smooth and safe installation.

Maintenance Best Practices

A well-cared-for clamp set works like a loyal sidekick. Workers inspect the clamps every year. They look for rust, loose bolts, or worn rubber pads. A simple checklist helps:

  • Check for corrosion or rust.
  • Tighten any loose bolts.
  • Replace damaged rubber pads.
  • Clean off dirt and debris.

Regular care keeps the clamp set strong and ready for action.

Comparison with Alternative Cable Support Solutions

The Double Suspension Clamp Set stands tall against other cable supports. Single suspension clamps work for short spans, but they struggle with wide gaps. Guy wires add support, but they take up space and need more hardware. Table below shows how the clamp set compares:

Feature Double Suspension Clamp Set Single Suspension Clamp Guy Wire Support
Wide Gap Support ⭐⭐⭐⭐⭐ ⭐⭐ ⭐⭐⭐
Vibration Protection ⭐⭐⭐⭐⭐ ⭐⭐
Easy Maintenance ⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐

The Double Suspension Clamp Set wins the gold medal for wide-span cable support!


Double suspension clamp sets keep cables standing tall over wide gaps. They fight off rust, grip cables tight, and help signals zip along without trouble. These clamp sets reduce stress, boost safety, and outshine other supports. Smart choices and regular checkups turn every cable system into a champion.

FAQ

How does the double suspension clamp set stop cables from sagging?

The clamp grabs the cable with two strong arms. This grip keeps the cable tight and high, even over wide gaps.

Tip: Two arms mean double the strength!

Can workers install the clamp set in rainy or windy weather?

Workers can install the clamp set in most weather. The tough materials fight off rust and keep the cable safe.

What types of cables work best with this clamp set?

The clamp set fits fiber optic and power cables. It handles different diameters and keeps cables steady in wild environments.

Cable Type Works Well?
Fiber Optic
Power
Old Rope

Post time: Aug-19-2025
