The LC APC Duplex Adapter uses a compact, dual-channel design to maximize connection density in fiber optic systems. Its 1.25 mm ferrule size allows more connections in less space compared to standard connectors. This feature helps reduce clutter and keeps cables organized, especially in high-density environments.
Key Takeaways
- The LC APC Duplex Adapter saves space by fitting two fiber connections into a small, compact design, making it perfect for crowded network setups.
- Its push-and-pull mechanism and duplex structure make installation and maintenance faster and easier, reducing cable clutter and damage risks.
- The angled physical contact (APC) design ensures strong, reliable signals while keeping cables organized and easy to manage in busy environments.

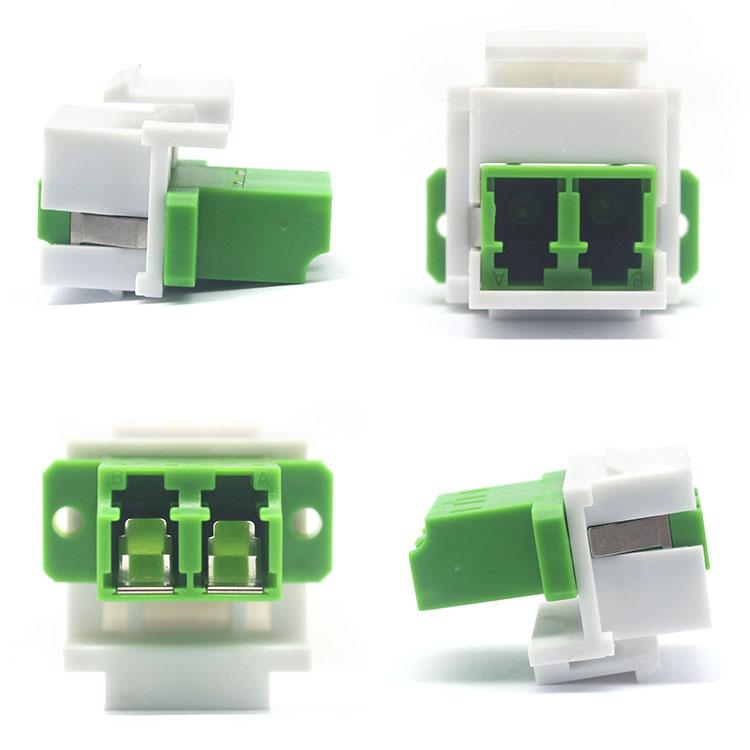

LC APC Duplex Adapter: Design and Function

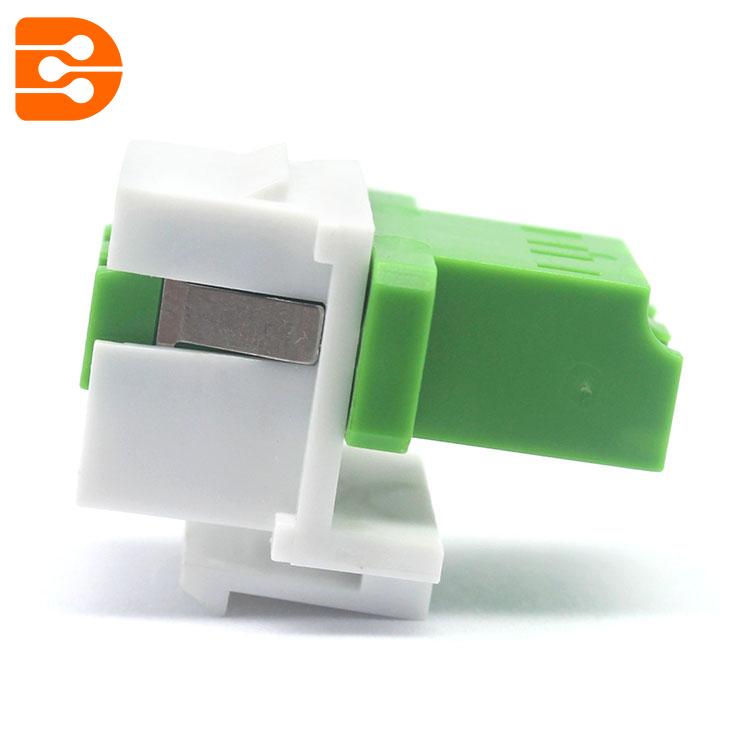

Compact Structure and Dual-Channel Configuration
The LC APC Duplex Adapter features a small and efficient design. Its compact structure allows it to fit into tight spaces, making it ideal for high-density environments. The dual-channel configuration supports two fiber connections in one adapter. This setup helps save space and keeps cables organized. Many network engineers choose this adapter when they need to maximize the number of connections without increasing clutter.
Push-and-Pull Mechanism for Easy Handling
The push-and-pull mechanism makes installation and maintenance simple.
- Users can connect and disconnect cables quickly.
- The design allows for secure connections in duplex transmission systems.
- It supports high-density cabling without reducing performance.
- This mechanism helps technicians work faster and keeps the system easy to manage.
Tip: The push-and-pull feature reduces the risk of damaging cables during installation or removal.
Ceramic Ferrule Technology for Reliable Connections
Ceramic ferrule technology plays a key role in the LC APC Duplex Adapter.
- Ceramic ferrules provide high precision and durability.
- They keep insertion loss low and signal transmission strong.
- High precision alignment reduces signal loss and back reflection.
- The ferrules can handle over 500 connection cycles, making them reliable for long-term use.
- They work well in harsh conditions, such as high temperatures and humidity.
The table below shows how ceramic ferrules help maintain strong performance:
| Performance Metric | LC Connector (Ceramic Ferrule) |
|---|---|
| Typical Insertion Loss | 0.1 – 0.3 dB |
| Typical Return Loss (UPC) | ≥ 45 dB |
| Return Loss (APC) | ≥ 60 dB |
These features ensure the LC APC Duplex Adapter delivers stable and reliable connections in many network settings.
Space-Saving Features of LC APC Duplex Adapter
High-Density Installation in Limited Spaces
The LC APC Duplex Adapter helps network engineers save space in crowded environments. Its design combines two simplex connectors into one small housing. This feature reduces the number of installation steps and saves both time and space. The adapter uses a longer clip latch, making it easier to disconnect cables even when many adapters sit close together. A lower clip design keeps the connector height low, which helps when stacking many adapters in a small area.
- Two connectors fit into one adapter, doubling the capacity.
- The longer latch allows quick release in tight spots.
- The lower clip saves vertical space.
- Multiple adapters can fit side by side, which is important in data centers and telecom rooms.
- The compact size supports reliable two-way communication without taking up extra room.
These features make the LC APC Duplex Adapter a smart choice for places where every inch counts.

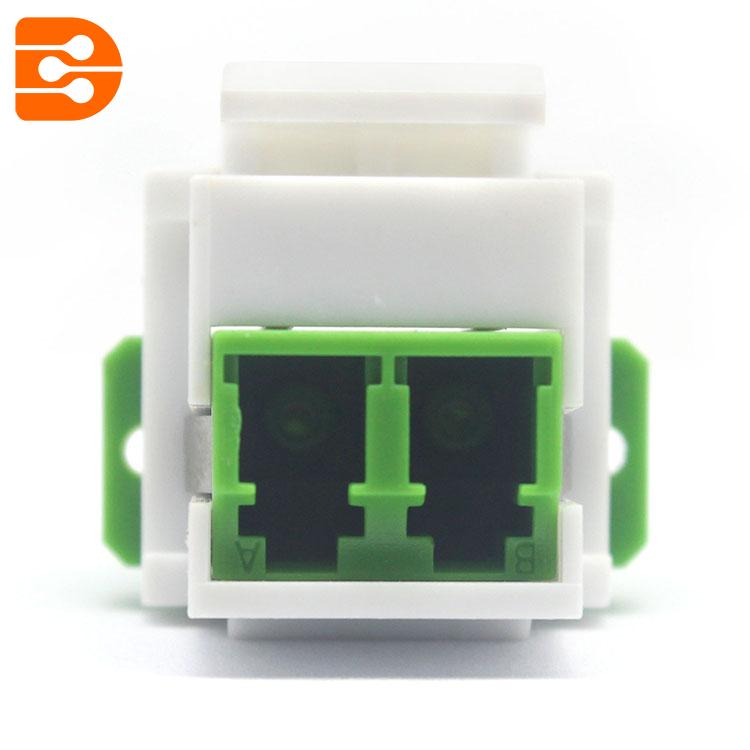

Duplex Configuration for Efficient Cable Routing
The duplex configuration improves cable management by allowing two fibers to connect through a single adapter. This setup supports two-way data transfer, which is important for fast and reliable networks. Duplex cables have two strands inside one jacket, so they can send and receive data at the same time. This reduces the need for extra cables and connectors.
- Two fibers connect in one adapter, cutting down on clutter.
- Fewer cables mean a neater and more organized system.
- Paired fibers can be routed together, making it easier to manage and trace connections.
- The duplex design makes installation and maintenance simpler than using single-fiber adapters.
In large networks, this configuration doubles the connection capacity without increasing the space needed. It also helps keep patch cords organized and easy to find.
Angled Physical Contact (APC) for Performance and Organization
The angled physical contact (APC) design uses an 8-degree polish on the connector end face. This angle reduces back reflection, which means less signal bounces back into the cable. Lower back reflection leads to better signal quality and more stable connections, especially over long distances. The duplex cable design, with its 3 mm jacket, also makes handling and organizing cables easier.
- The 8-degree angle gives a return loss of 60 dB or better, which means very little signal is lost.
- The design supports high-speed data and video transmission.
- Factory testing checks for low signal loss, strong connectors, and clean end faces.
- The compact and durable build fits well in crowded racks and panels.
- The APC design keeps cables tidy and helps prevent tangles.
The table below shows how APC connectors compare to UPC connectors in terms of performance:
| Connector Type | End-Face Angle | Typical Insertion Loss | Typical Return Loss |
|---|---|---|---|
| APC | 8° angled | Approximately 0.3 dB | Around -60 dB or better |
| UPC | 0° flat | Approximately 0.3 dB | Around -50 dB |
The LC APC Duplex Adapter uses the APC design to deliver strong, clear signals and keep cables organized, even in busy network environments.
LC APC Duplex Adapter vs. Other Connector Types

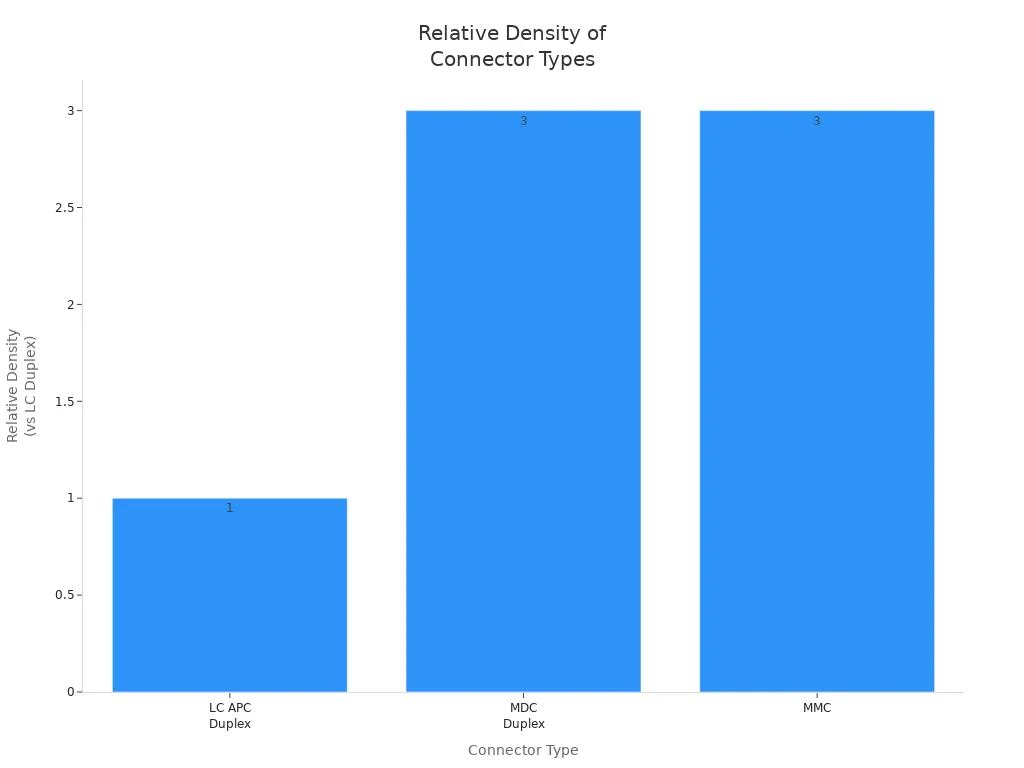

Space Utilization and Density Comparison
The LC APC Duplex Adapter stands out for its ability to maximize space in fiber optic systems. Its small form factor uses a 1.25 mm ferrule, which is about half the size of traditional connectors. This compact design allows network engineers to fit more connections into the same area. In high-density environments, such as data centers, this feature becomes very important.
- LC connectors are much smaller than older types, making them ideal for crowded racks.
- The duplex design holds two fibers in one adapter, doubling the connection capacity.
- High-density patch panels can use these adapters to save space and reduce clutter.
A comparison table shows the difference in size and usage:
| Attribute | SC Connector | LC Connector |
|---|---|---|
| Ferrule Size | 2.5 mm | 1.25 mm |
| Mechanism | Pull-push | Latch locking |
| Typical Usage | Less dense setups | High-density areas |
The LC APC Duplex Adapter can support up to 144 fibers per rack unit, which helps network teams build larger systems in smaller spaces.
Cable Management and Maintenance Advantages
Network teams benefit from the LC APC Duplex Adapter’s design when managing cables. Its small size and dual-fiber structure make it easier to keep cables neat and organized. The adapter’s latch locking mechanism allows for quick connections and disconnections, which saves time during installation and maintenance.
- Technicians can identify and access cables faster in high-density panels.
- The adapter reduces the risk of tangled or crossed cables.
- Its compact build supports clear labeling and easy tracing of fiber paths.
Note: Good cable management leads to fewer errors and faster repairs, which keeps networks running smoothly.
The LC APC Duplex Adapter creates a space-saving and organized fiber optic system.
- Its compact design fits more connections into tight spaces, which is important for data centers and growing networks.
- The adapter’s duplex structure supports two-way data flow, making cable management easier and more efficient.
- Features like a longer clip and lower profile help technicians maintain and expand systems with less effort.
- The angled contact design keeps signals strong and reliable, even as networks grow.
As demand for high-density, reliable connections rises in fields like healthcare, automation, and 5G, this adapter stands out as a smart choice for future-ready networks.
FAQ
What is the main benefit of using an LC APC Duplex Adapter?
The adapter allows more fiber connections in less space. It helps keep cables organized and supports high-density network setups.
Can the LC APC Duplex Adapter work with both singlemode and multimode cables?
Yes. The adapter supports both singlemode and multimode fiber optic cables. Singlemode adapters provide more precise alignment for better performance.
How does the push-and-pull mechanism help technicians?
The push-and-pull mechanism lets technicians connect or disconnect cables quickly. It reduces installation time and lowers the risk of cable damage.
