How Does Using Double Suspension Clamp Sets Increase Cable Safety?

Double Suspension Clamp Set increases cable safety by giving strong support and reducing stress on cables. This clamp set protects cables from harsh weather and physical damage. Many engineers trust these sets to keep cables secure in tough conditions. They help cables last longer and work safely.

Key Takeaways

• Double suspension clamp sets provide strong, stable support that keeps cables tight and prevents sagging or slipping, helping cables last longer and stay safe.
• These clamps protect cables from damage caused by wind, vibration, and harsh weather by spreading the load evenly and using materials that resist rust and wear.
• Compared to single suspension clamps and other supports, double suspension clamps offer better grip, reduce stress on cables, and work well in tough environments like river crossings and valleys.

Double Suspension Clamp Set: Structure and Safety Features

Mechanical Support and Stability

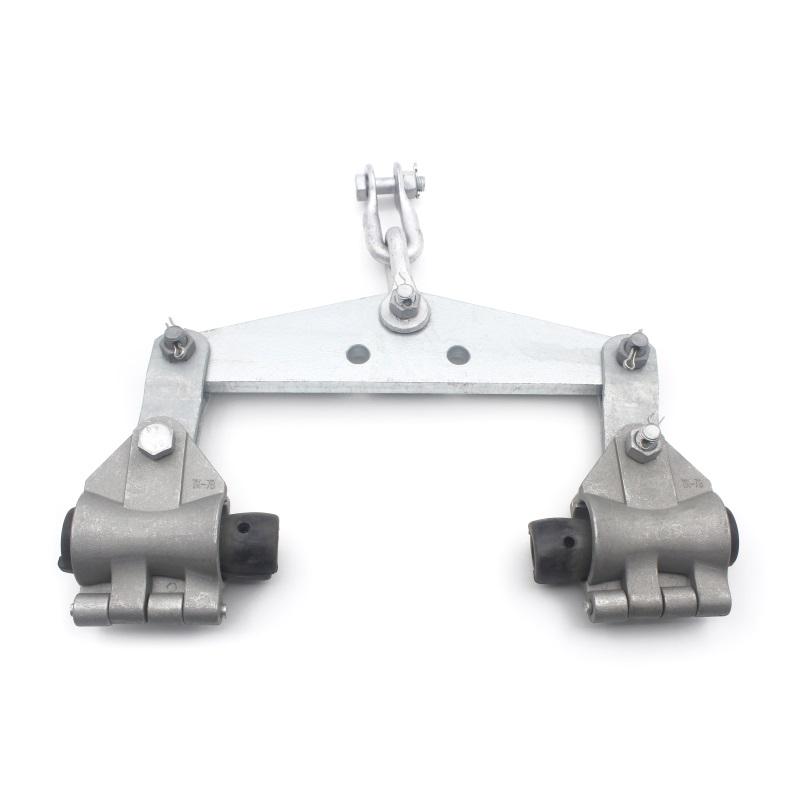

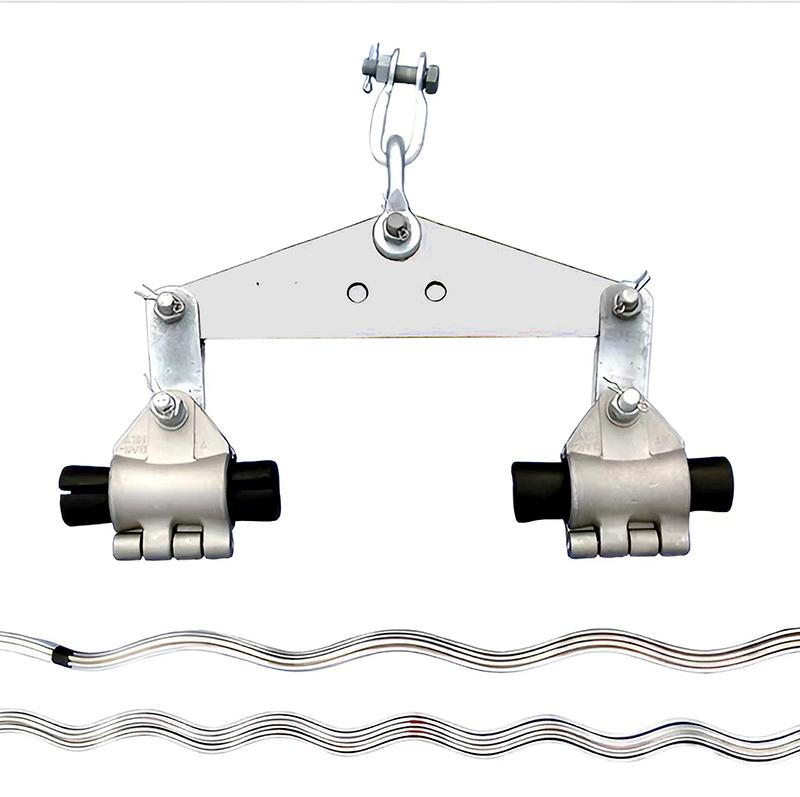

A Double Suspension Clamp Set uses several key components to keep cables safe and stable. These include structural reinforcing rods, dead-end parts, AGS clamps, PS-links, yoke plates, U-clevis, and grounding clamps. Each part works together to give cables strong support and help them resist bending, compression, and vibration. The double suspension design uses both inner and outer pre-twisted wires. This setup helps cables stay steady even when they cross rivers, deep valleys, or areas with big height changes.

Note: The clamp set uses high-quality elastomer inserts and strong aluminum alloy castings. These materials resist weather, ozone, and temperature changes, making the clamp set last longer and protect the cable better.

The clamp’s aerodynamic shape lets wind flow smoothly around it. This reduces the chance of cables moving or swaying in strong winds. The design also spreads the cable’s weight evenly, which keeps the cable in place and stops it from slipping.

Enhanced Grip Strength and Load Distribution

The Double Suspension Clamp Set spreads the load across a larger area of the cable. This reduces stress and helps prevent bending or vibration damage. The clamp uses rubber inserts, armor grip, bolts, and nuts to hold the cable firmly. Helical preformed rods add extra protection and help the cable resist vibration.

• The clamp set’s anti-slip design uses friction and bolt pressure to keep the cable from moving.
• Custom options let installers match the clamp to different cable sizes and spans, making sure the grip is always strong.
• Neoprene or elastomer pads inside the clamp add extra damping, which protects the cable from small bends and signal loss.

These features help the Double Suspension Clamp Set keep cables safe, even in tough environments or over long distances.

Double Suspension Clamp Set: Solving Cable Safety Challenges

Preventing Sagging and Drooping

Sagging and drooping can cause cables to lose their shape and strength. The Double Suspension Clamp Set uses two suspension points to spread the cable’s weight. This design keeps the cable tight and helps it stay in place, even over long distances or sharp turns. Reinforcing rods inside the clamp protect the cable from bending too much. The clamp’s strong grip holds the cable firmly, which stops it from slipping or sagging.

• The clamp keeps tension steady along the cable, which is important for safety.
• Armor rods inside the clamp protect against bending and help the cable last longer.
• The clamp uses tough materials like aluminum alloy and stainless steel, which resist rust and damage from the weather.
• Adjustable yoke plates let the clamp fit different cable sizes and shapes.

By keeping cables tight and secure, the Double Suspension Clamp Set helps prevent accidents and reduces the need for repairs.

Minimizing Wear and Mechanical Stress

Cables face stress from wind, movement, and their own weight. The Double Suspension Clamp Set uses special rods and rubber inserts to cushion the cable. These parts absorb vibrations and reduce the force on the cable. The clamp’s design spreads the load over a larger area, which lowers the risk of damage.

• Reinforcing rods cut down on bending and squeezing forces.
• Rubber pads inside the clamp absorb shocks and stop the cable from rubbing against metal.
• The clamp’s shape protects the cable from sharp bends, even at angles up to 60 degrees.
• Captured bolts make installation easy and safe, which helps avoid extra stress during setup.

The clamp uses strong materials like aluminum alloy and galvanized steel. These materials fight rust and wear, so the cable stays safe for a long time. The clamp’s flexible grip and soft inserts also help stop the cable from wearing out too soon.

Protection Against Environmental Hazards

Cables outdoors face many dangers, such as wind, rain, sun, and temperature changes. The Double Suspension Clamp Set stands up well to these hazards. Field tests show that this clamp set works better than other cable supports in tough weather.

• The clamp’s sturdy build handles heavy loads and strong winds.
• High-quality materials resist rust, UV rays, and moisture.
• The clamp’s design keeps cables from snapping or falling, which helps prevent power outages.
• The clamp fits many cable sizes, making it useful for different projects.

A table below shows how the clamp design helps prevent common cable failures:

The Double Suspension Clamp Set uses corrosion-resistant steel and aluminum alloy. These materials last a long time and need little care. The clamp’s adjustable screws let workers set the right tension, which keeps cables straight and safe. This careful design helps cables stay strong and reliable, even in harsh environments.

Double Suspension Clamp Set vs. Alternative Solutions

Safety Advantages Over Single Suspension Clamps

The Double Suspension Clamp Set offers several safety benefits when compared to single suspension clamps. Single suspension clamps work well for short spans but struggle with long distances or sharp angles. They often create stress points that can lead to cable sagging or damage. In contrast, the double suspension design uses two support points, which helps spread the cable’s weight more evenly. This reduces the risk of bending, slipping, or breaking.

Installation and maintenance also differ between these two options:

• Double suspension clamps need special tools like wrenches and tension gauges.
• The process includes checking cables, attaching armor rods, and tightening bolts with adjustable yoke plates.
• Single suspension clamps install faster but do not offer the same level of support.
• Double suspension clamps require regular inspections but need less frequent maintenance because of their strong materials and design.
• Single suspension clamps may need more repairs due to higher stress on the cable.

The double suspension design handles high tension and large angles better, making it safer for challenging environments.

Comparison With Other Cable Support Methods

Other cable support methods, such as hooks, ties, or simple brackets, do not provide the same level of safety. These methods often fail to distribute weight evenly, which can cause cables to sag or wear out quickly. They may also lack the grip strength needed for heavy or long-span cables.

The Double Suspension Clamp Set stands out because it:

• Supports a wide range of cable sizes and types.
• Reduces the chance of cable movement or slippage.
• Protects cables from harsh weather and mechanical stress.

Many engineers choose this clamp set for projects that demand high safety and reliability. Its design helps keep cables secure and working well, even in tough conditions.

Engineers have seen strong results using double suspension clamp sets in real-world projects. For example, bridges like Dames Point and Shing-Tong have shown fewer cable problems after installation. These clamp sets help cables stay safe by stopping sagging, reducing wear, and protecting against harsh weather.

FAQ

How does a double suspension clamp set help cables last longer?

The clamp set spreads weight and reduces stress. This helps cables avoid damage from bending or vibration. Engineers see longer cable life in tough environments.

What types of cables work with double suspension clamp sets?

• Fiber optic cables
• Power cables
• Communication cables

Installers choose the clamp set for many cable sizes and types.

Where do engineers use double suspension clamp sets most often?

Engineers select these clamps for challenging outdoor projects.
