Selecting the right drop cable splice tube plays a vital role in ensuring optimal performance. Compatibility with existing cables prevents potential issues. Evaluating material options enhances durability and environmental resistance. Additionally, determining the appropriate size for specific applications guarantees effective installation and functionality.
Key Takeaways
- Choose a drop cable splice tube that matches the type of fiber optic cable. Compatibility ensures optimal performance and reduces connectivity issues.
- Select materials that withstand environmental challenges. High-quality materials protect against weather, moisture, and UV exposure, enhancing durability.
- Consider the size and application of the splice tube. Standard sizes simplify installation, while custom options cater to specific project needs.
Compatibility Considerations
Cable Types
When selecting a drop cable splice tube, understanding the types of cables involved is essential. Different fiber optic cables serve various purposes, and compatibility with the splice tube ensures optimal performance. The most common types of fiber optic cables include:
- Single-Mode Fiber (SMF): This type of cable allows light to travel through a single path, making it ideal for long-distance communication.
- Multi-Mode Fiber (MMF): Multi-mode cables support multiple light paths, which makes them suitable for shorter distances and local area networks.
Choosing a drop cable splice tube that accommodates both single-mode and multi-mode fibers enhances versatility. It allows for seamless integration into existing systems, reducing the risk of connectivity issues.
Connector Types
The choice of connectors also plays a significant role in ensuring compatibility with drop cable splice tubes. Several connector types are widely recognized in fiber optic installations. These include:
- SC
- LC
- ST
- MTP/MPO
These connectors are compatible with both single-mode and multimode fiber-optic cables. Their versatility makes them suitable for various applications in fiber optic installations. Selecting a drop cable splice tube that supports these connector types simplifies the installation process and enhances overall system reliability.
Material Selection for Drop Cable Splice Tubes
Environmental Factors
When selecting a drop cable splice tube, environmental factors significantly impact performance. Understanding these factors helps ensure the longevity and reliability of fiber optic connections. Key environmental considerations include:
- Weather Conditions: Extreme weather can lead to cable degradation. Rain, snow, and high winds can affect the integrity of the splice tube.
- Moisture Exposure: Water can compromise the performance of cables. Proper sealing and protection against moisture are essential.
- UV Exposure: Prolonged exposure to sunlight can cause deterioration over time. UV-resistant materials help mitigate this risk.
- Temperature Fluctuations: Extreme temperature changes can impact the performance of the splice tube. Materials must withstand a wide range of temperatures.
Selecting a splice tube made from high-quality materials, such as ABS, can provide protection against these environmental challenges.
Durability Requirements
Durability is a crucial aspect of drop cable splice tubes. A well-designed splice tube should withstand various stresses and environmental conditions. Here are some industry standards for durability:

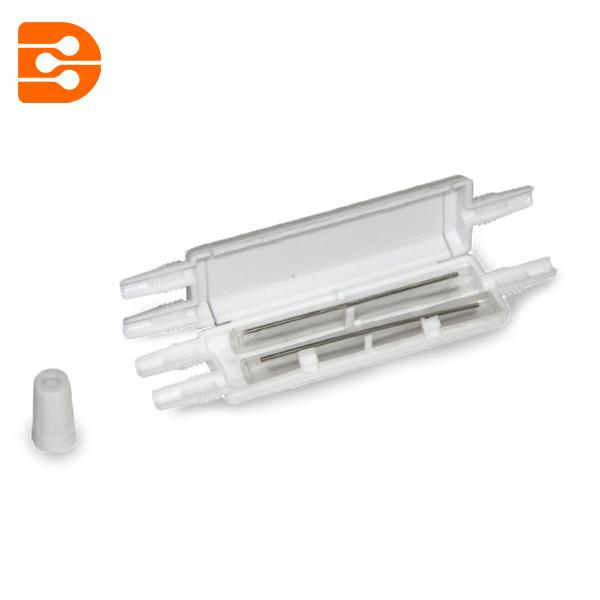

- The splice tube features a heat-shrinkable outer layer, a rigid middle section, and a heat-meltable adhesive inner tube. This design enhances durability and protects fiber optic connections.
- The construction minimizes the risk of damage over time. It safeguards delicate splicing points, ensuring the longevity of the fiber network.
- Using industrial-grade ABS material offers flame resistance and protection against environmental conditions. This sets a high standard for durability in fiber-to-the-home (FTTH) networks.
The average lifespan of drop cable splice tubes under typical operating conditions can reach around 25 years. Some cables have even outlasted this benchmark. For instance, some 3M Cold Shrink Products installed in the field are still operational after almost 50 years. This longevity highlights the importance of selecting durable materials for fiber optic installations.
Size and Dimensions of Drop Cable Splice Tubes
Standard Sizes
Drop cable splice tubes come in various standard sizes to accommodate different installation needs. These sizes typically range from compact models designed for limited space to larger options that can handle multiple connections. Common dimensions include:
- 18x11x85mm: Ideal for small installations, accommodating 1-2 subscribers’ drop cables.
- Larger models: Designed for more extensive networks, these can support multiple connections and larger fiber counts.
Using standard sizes simplifies the installation process. It allows technicians to quickly select the right splice tube for their specific application.
Custom Options
In some cases, standard sizes may not meet specific project requirements. Custom-sized drop cable splice tubes offer a solution. Here are some common reasons for requesting custom dimensions:
| Reason for Customization | Description |
|---|---|
| Minimized slack storage | Custom drop cable lengths help reduce excess cable, leading to more efficient installations. |
| Varying installation requirements | Different environments necessitate specific dimensions for optimal performance. |
| Enhanced deployment speed | Mechanical splicing can be completed faster than traditional methods, allowing for quicker installations. |
Lead times for custom-sized drop cable splice tubes can be as short as 6-8 weeks for certain fiber cables. Costs remain competitive, with a commitment to meet or beat US-based pricing for quality products. Current lead times may vary due to high demand from major companies.
Choosing the right size and dimension for drop cable splice tubes ensures effective installation and optimal performance in various environments.
Application Requirements for Drop Cable Splice Tubes
Indoor vs. Outdoor Use
Choosing the right drop cable splice tube depends on whether the installation is indoors or outdoors. Each environment presents unique challenges.
For indoor installations, cables often use low smoke, halogen-free (LSZH) materials. These materials minimize smoke and toxic emissions in case of fire. Indoor cables typically operate within a temperature range of 0 °C to +60 °C. They may not require water-blocking features unless installed in damp areas.
In contrast, outdoor installations demand more robust solutions. Outdoor cables often feature UV-stable polyethylene (PE) or PVC jackets. These materials protect against sun exposure and moisture. Outdoor cables must withstand harsher conditions, with temperature ranges from −40 °C to +70 °C. They may also include water-blocking yarns and optional armoring for added protection against physical damage.
Outdoor routes face harsher conditions such as sun, water, wind, and impact. Indoor routes must comply with safety codes and navigate tight spaces. The designs diverge significantly in terms of bend radius and crush strength, with indoor cables being more flexible and outdoor cables designed to withstand higher tension and crush ratings.
Specific Industry Standards
Different applications require adherence to specific industry standards. For instance, residential installations often do not require splicing, as cables are typically installed in one piece. In contrast, commercial installations frequently involve splicing fibers to connect with other cables.
| Aspect | Residential Installations | Commercial Installations |
|---|---|---|
| Splicing | Generally not required; cables are installed in one piece | Splicing is common; fibers are spliced to other cables |
| Termination | Often done directly on fibers | Typically involves splicing pigtails onto fibers |
| Compliance with Fire Codes | Must meet local fire codes; OSP cables must be terminated shortly after entering a building | Must comply with NEC flammability requirements; often requires conduit for OSP cables |
| Support Structures | May use simpler support structures | Requires more complex support structures for cable management |
| Fire Stopping | Firestopping required at all wall and floor penetrations | Similar firestopping requirements, but may have additional regulations based on building use |
Understanding these application requirements ensures that technicians select the appropriate drop cable splice tube for their specific needs.
Choosing the right drop cable splice tube requires careful consideration of compatibility, material, size, and application. Following best practices helps ensure successful installations. Common mistakes include:
- Always choosing the smallest cable, which can lead to higher signal loss.
- Using high-resistance cables that negatively impact signal accuracy.
- Deploying unshielded cables in noisy environments, increasing interference.
- Forgetting about chemical resistance, which is crucial for specific environments.
- Using indoor cables for outdoor applications, risking quick degradation.
Consult with professionals if uncertain about specific requirements.
FAQ
What is a drop cable splice tube?
A drop cable splice tube connects drop cables to pigtail cables in fiber optic installations. It protects splice connections and ensures reliable performance.
How do I choose the right size splice tube?
Select a splice tube based on the number of connections needed. Standard sizes accommodate various applications, while custom options fit specific project requirements.
Can I use indoor splice tubes outdoors?
No, indoor splice tubes lack the necessary protection against environmental factors. Always use outdoor-rated splice tubes for outdoor installations to ensure durability and performance.
