What Makes PLC Splitters Essential for FTTH Installations?

PLC Splitters stand out in FTTH networks for their ability to distribute optical signals efficiently. Service providers choose these devices because they work across multiple wavelengths and deliver equal splitter ratios.

• Lowering project costs
• Providing reliable, long-lasting performance
• Supporting compact, modular installations

Key Takeaways

• PLC Splitters efficiently distribute optical signals, allowing one fiber to serve multiple users, which reduces project costs.
• These splitters provide reliable performance with lower insertion loss, ensuring better signal quality and faster connections.
• Flexibility in design allows PLC Splitters to fit various installation needs, making it easy to upgrade networks without disrupting service.

PLC Splitters in FTTH Networks

What Are PLC Splitters?

PLC Splitters play a vital role in fiber optic networks. They are passive devices that divide a single optical signal into multiple outputs. This function allows one fiber from the central office to serve many homes or businesses. The construction uses advanced materials and technologies, such as optical waveguides, silicon nitride, and silica glass. These materials ensure high transparency and reliable performance.

How PLC Splitters Work

The splitting process uses an integrated waveguide to distribute the optical signal evenly across all output ports. This design does not require external power, which makes the device highly efficient. In a typical FTTH network, a single fiber from the main equipment enters the splitter. The splitter then divides the signal into several outputs, each connecting to a subscriber’s terminal. The design of PLC Splitters leads to some signal loss, known as insertion loss, but careful engineering keeps this loss low. Managing this loss is crucial for strong and stable network performance.

Types of PLC Splitters

Several types of PLC Splitters exist to meet different installation needs:

• Blockless splitters offer a compact design and strong fiber protection.
• ABS splitters use a plastic housing and fit many environments.
• Fanout splitters convert ribbon fiber to standard fiber sizes.

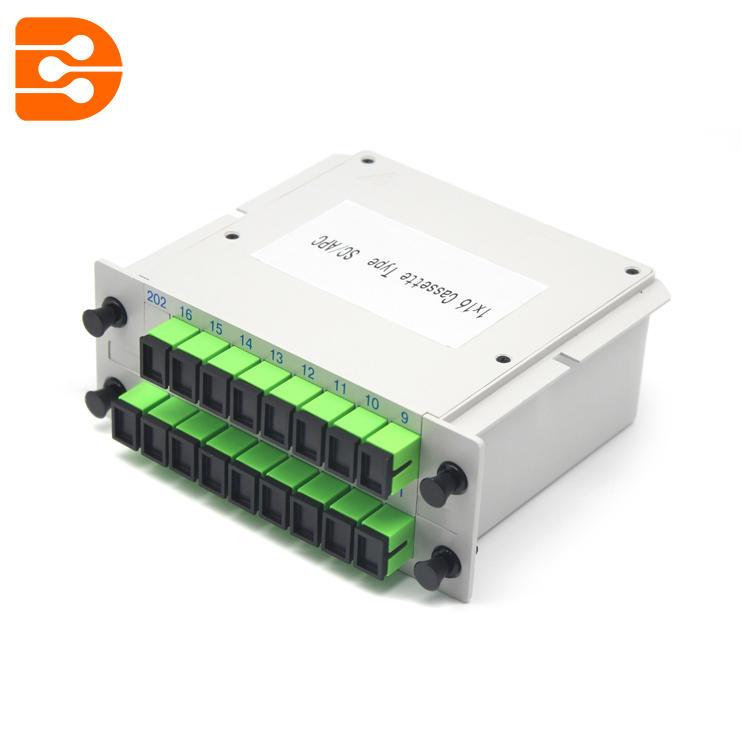

• Tray type splitters fit easily into distribution boxes.
• Rack-mount splitters follow industry rack standards for easy installation.
• LGX splitters provide a metal housing and plug-and-play setup.
• Mini plug-in splitters save space in wall-mounted boxes.

Tip: Choosing the right type ensures smooth installation and reliable service for every FTTH project.

Advantages of PLC Splitters Over Other Splitter Types

High Splitting Ratios and Signal Quality

Network operators need devices that deliver consistent performance to every user. PLC Splitters stand out because they offer fixed and equal splitting ratios. This means each connected device receives the same amount of signal power, which is essential for reliable service. The table below shows how PLC Splitters compare to FBT splitters in splitting ratios:

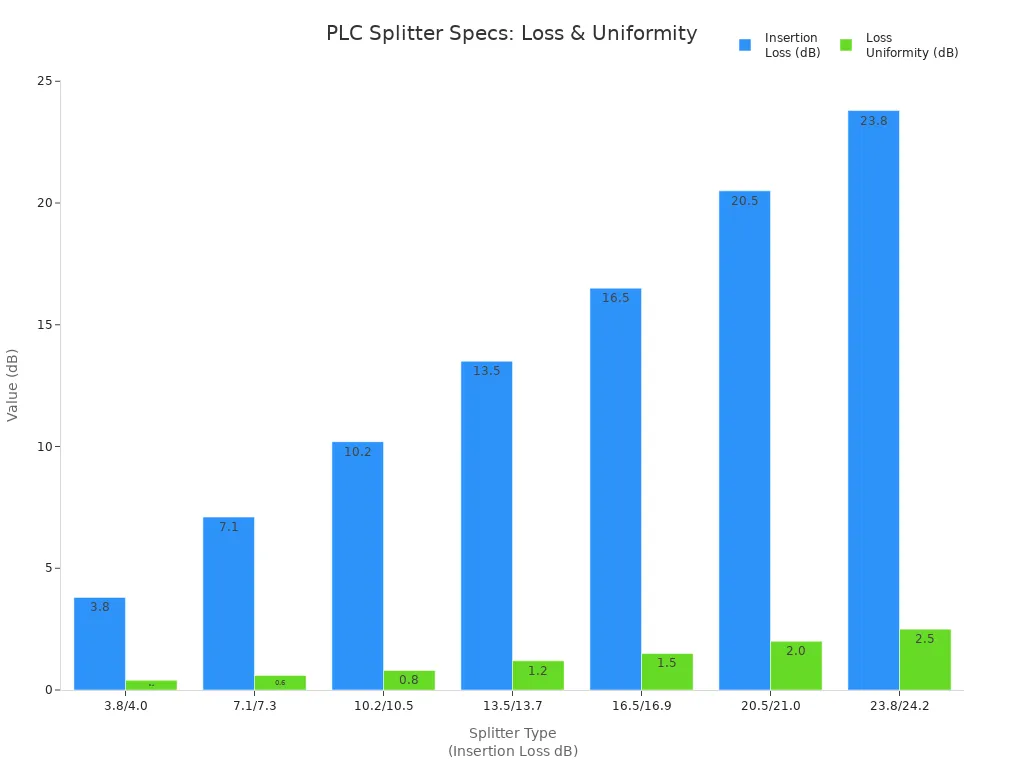

This equal distribution leads to better signal quality. PLC Splitters also maintain lower insertion loss and higher stability than other splitter types. The following table highlights these differences:

Note: Lower insertion loss means less signal is lost during splitting, so users enjoy faster and more stable connections.

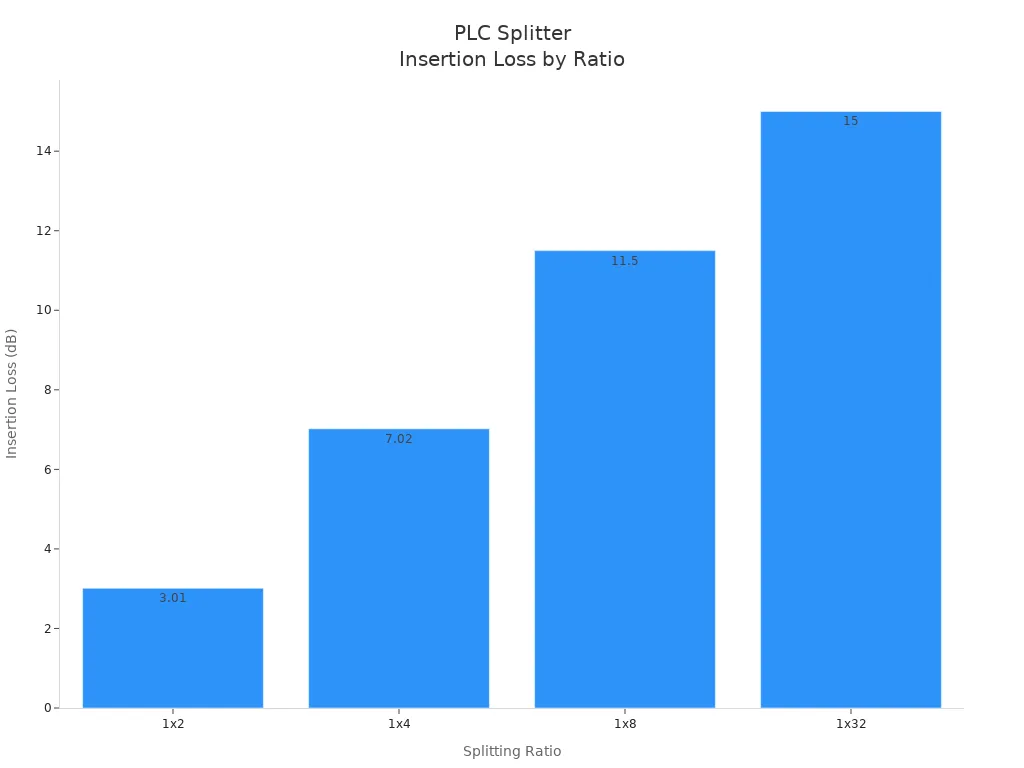

The chart below shows how insertion loss increases with higher splitting ratios, but PLC Splitters keep this loss at a minimum:

Cost Efficiency and Scalability

Service providers want to expand their networks without high costs. PLC Splitters help them do this by supporting many users from a single input fiber. This reduces the amount of fiber and equipment needed. The devices also have a lower failure rate, which means less maintenance and fewer replacements.

• PLC Splitters provide a cost-effective solution for expanding network capacity.
• Each device receives the right amount of signal power, so there is no waste.
• The design supports both centralized and distributed network architectures, making upgrades and reconfigurations simple.

The telecom and data center sectors rely on these splitters because they are easy to deploy and work well in harsh environments. Advances in technology have made them smaller and more durable, which helps with rapid network growth.

Flexibility in Network Design

Every FTTH project has unique needs. PLC Splitters offer many design options to fit different installation types and environments. The table below shows some common configurations:

Network designers can choose from bare fiber, steel tube, ABS, LGX, plug-in, and rack mount options. This flexibility allows easy integration into different network setups, whether in urban or rural areas. In cities, distributed splitter designs connect many users quickly. In rural areas, centralized splitting helps cover longer distances with fewer fibers.

Tip: PLC Splitters make it easy to add new users or upgrade the network without interrupting existing connections.

Service providers can also customize split ratios, packaging, and connector types to match specific project requirements. This adaptability ensures that every installation delivers the best performance and value.

PLC Splitters deliver unmatched efficiency and reliability for FTTH installations. Their robust design withstands extreme temperatures, as shown below:

Growing demand for high-speed internet and 5G drives rapid adoption, making PLC Splitters a smart investment for future-proof networks.

FAQ

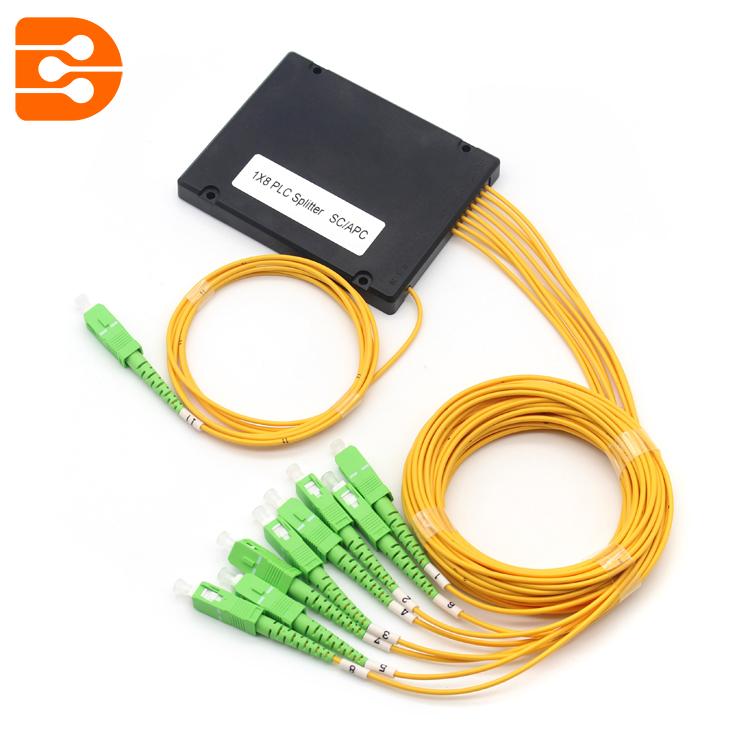

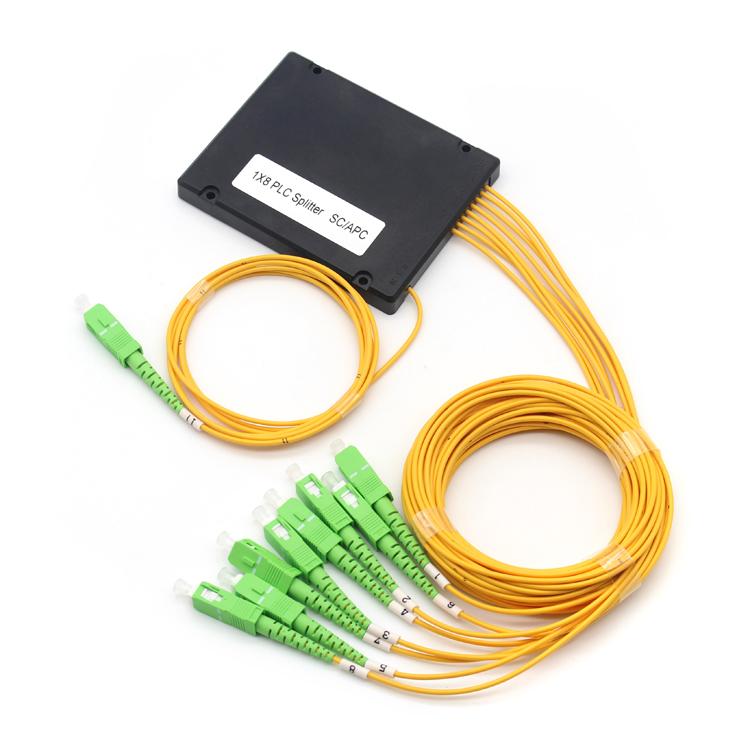

What makes the 8Way FTTH 1×8 Box Type PLC Splitter from Fiber Optic CN stand out?

Fiber Optic CN’s splitter delivers reliable performance, low insertion loss, and flexible customization. Users trust this product for both residential and commercial FTTH projects.

Can PLC splitters handle extreme weather conditions?

Yes!
