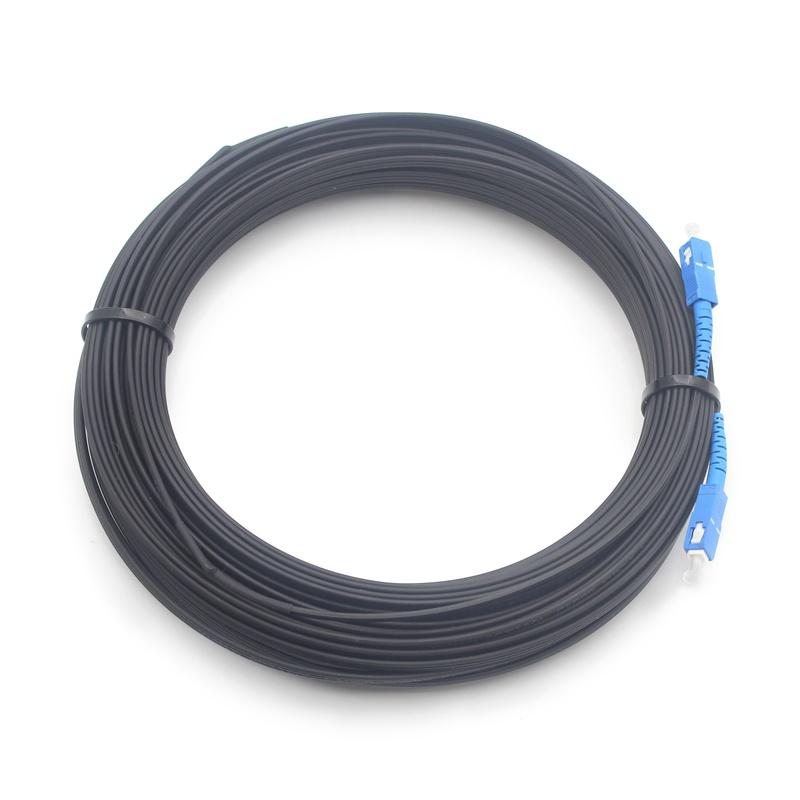

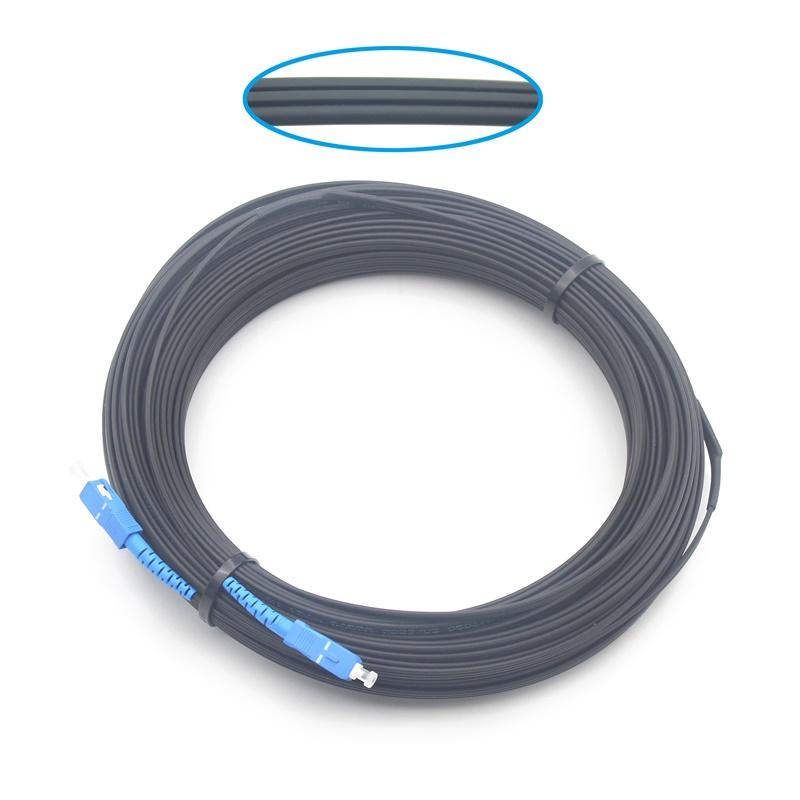

The 2.0×5.0mm SC APC FTTH Drop Cable Patch Cord delivers outstanding reliability and performance for FTTH networks. With a low insertion loss of ≤0.2 dB and high return loss values, this SC APC FTTH Drop Cable Assembly ensures stable, high-speed data transmission. Growing FTTH deployments worldwide highlight the need for robust solutions like the SC APC Pre-connectorized FTTH Fiber Optic Drop Cab and Drop Cable Patch Cord.
| Parameter | Typical Value |
|---|---|
| Insertion Loss | ≤ 0.2 dB |
| Return Loss | ≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Durability | ≥ 1000 mating cycles |
Key Takeaways
- The 2.0×5.0mm SC UPC Cable Patch Cord offers a slim, flexible design that makes installation easier in tight spaces and helps maintain strong, stable connections for fast internet.
- This patch cord delivers low signal loss and high return loss, ensuring reliable, high-speed data transmission even in challenging environments.
- It meets strict international standards and certifications, guaranteeing broad compatibility, long-term durability, and consistent performance for modern FTTH networks.
Cable Patch Cord Design and Performance
Compact 2.0×5.0mm Form Factor
The 2.0×5.0mm form factor offers a compact and flexible solution for modern fiber optic installations. Installers often face challenges when routing cables through tight spaces and complex pathways in FTTH environments. The slim profile of this Cable Patch Cord allows for easy handling and efficient cable management, reducing the risk of damage during installation. Multiple strands of fine copper wire inside the cord provide softness and flexibility, making it suitable for both indoor and outdoor deployments. The design supports single-fiber connections, which simplifies network expansion and maintenance.
Note: Dowell engineers have optimized the sheath and internal structure to ensure the cable withstands frequent bending and handling, maintaining performance over time.
SC UPC Connector Precision
SC UPC connectors deliver high precision and reliability in fiber optic networks. The push-pull locking mechanism ensures a secure connection, minimizing the risk of accidental disconnection. This connector type is widely used in routers, switches, and patch panels due to its ease of use and stable performance. The zirconia ceramic ferrule inside each connector guarantees accurate alignment of the fiber core, which is essential for minimizing signal loss. Dowell utilizes advanced polishing and inspection techniques, including 3D interferometry, to achieve optimal endface geometry and cleanliness. These measures help maintain low back-reflection and consistent optical performance.
- SC connectors are easy to plug and unplug, supporting quick installation.
- The design supports high-density network environments, making it ideal for FTTH applications.
- Each connector undergoes rigorous endface inspection to prevent contamination and ensure long-term reliability.
Low Insertion Loss and High Return Loss

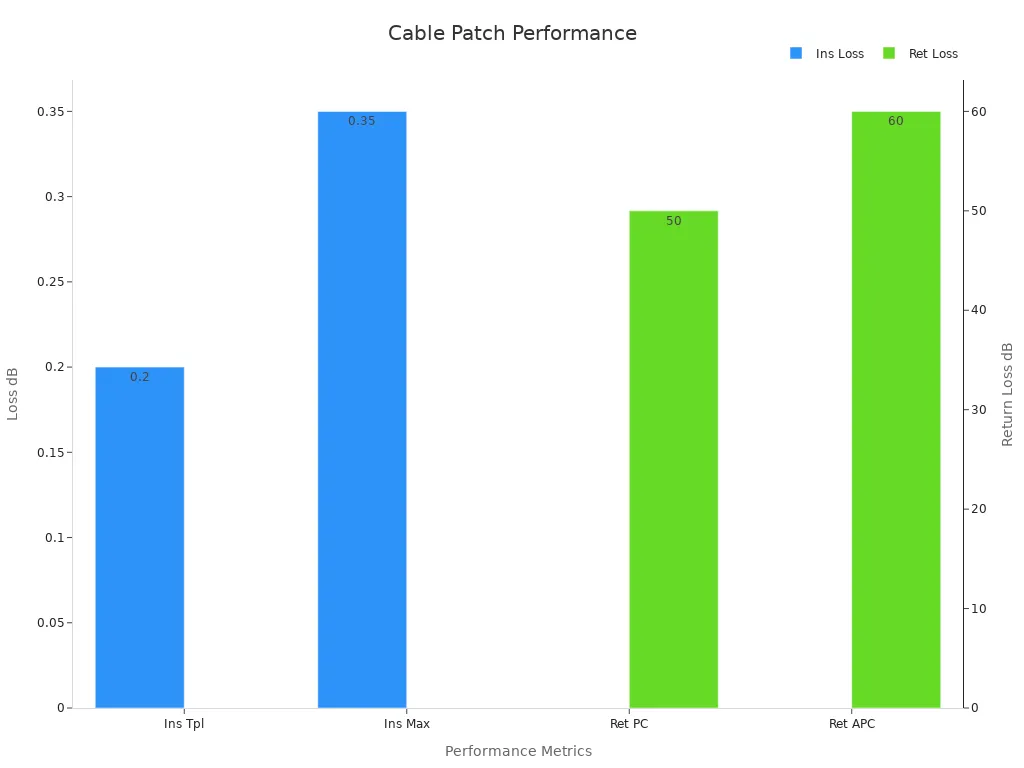

Performance metrics such as insertion loss and return loss define the quality of a fiber optic connection. The 2.0×5.0mm SC UPC Cable Patch Cord achieves a typical insertion loss of ≤0.20 dB, which surpasses many competitor products that offer insertion loss values up to 0.3 dB. High return loss values, with UPC connectors reaching ≥50 dB and APC connectors achieving ≥60 dB, further enhance signal integrity by reducing back-reflection.
| Connector Type | Maximum Insertion Loss | Minimum Return Loss |
|---|---|---|
| UPC | 0.3 – 0.5 dB | -50 dB or greater |
| APC | 0.3 – 0.5 dB | -60 dB or greater |
Dowell’s Cable Patch Cord consistently maintains these low insertion loss and high return loss figures, even under varying temperature and humidity conditions. This stability ensures reliable data transmission for high-speed FTTH networks.
Enhanced Signal Stability for FTTH
Signal stability remains a top priority in FTTH deployments. Dowell subjects every Cable Patch Cord to comprehensive component testing, including frequency, insertion loss, return loss, and crosstalk measurements. Each cord undergoes 100% factory testing, with detailed reports verifying performance. These tests confirm that the patch cord maintains excellent signal quality, avoiding data packet loss or corruption, even in demanding environments such as data centers.
- Testing includes insertion and return loss measurements, attenuation checks, and endface inspections after polishing.
- Physical tests simulate environmental stresses like heat, moisture, and mechanical impact.
- Strict quality management ensures consistent performance from production to field installation.
The result is a Cable Patch Cord that delivers stable, high-speed data transmission, supporting the bandwidth demands of modern FTTH networks. Dowell’s commitment to quality and innovation positions this product as a leading choice for reliable fiber optic connectivity in 2025.
Cable Patch Cord Installation, Compatibility, and Future-Proofing
Easy Handling and Routing in FTTH Environments
Installers often face complex environments when deploying fiber-to-the-home networks. The 2.0×5.0mm SC UPC Cable Patch Cord addresses these challenges with a compact, flexible design that simplifies routing through tight spaces and crowded conduits. Dowell engineers have optimized the sheath and internal structure to withstand frequent bending and handling, ensuring the cable maintains performance over time.
Pre-terminated fiber optic drop cables have proven effective in FTTH deployments by reducing installation time, improving quality, and minimizing on-site errors. Urban and rural case studies show that pre-terminated cables enable faster deployment, cost savings, and fewer maintenance issues.
- Proper cable routing, including the use of cable trays and hooks, supports efficient installation.
- Correct tensioning prevents fiber damage and extends service life.
- Trained personnel and thorough documentation help maintain long-term network performance.
Passive Optical Networks (PONs) further simplify installation by using fewer active components and serving multiple customers over a single fiber. This architectural simplicity, combined with durable, weather-resistant cables, leads to fewer repairs and lower maintenance costs.
Broad Device and Network Compatibility
Dowell’s Cable Patch Cord demonstrates broad compatibility with a wide range of network hardware. The product carries UL listings for the U.S. and Canada, as well as GSA approval, confirming compliance with strict safety and quality standards. These certifications make the patch cord suitable for diverse and demanding network environments.
Patch cords from Dowell undergo rigorous channel and permanent link testing to verify performance. They meet RoHS, ETL, UL, and ISO standards, ensuring reliable operation in both legacy and modern networks. High-purity oxygen-free copper cores and advanced shielding options contribute to stable conductivity and minimize signal loss.
Network deployment analytics highlight the benefits of compatibility in high-density device environments. Distributed architectures, such as Remote PHY and Remote MAC-PHY, support efficient operations and better management of space, power, and cooling. Fiber optic patch cords with bend-insensitive fibers and ultra-low loss technology maintain network performance even in dense deployments. Factory termination and clean connectors ensure seamless integration with upgraded infrastructures.
Third-party testing confirms that high-quality, properly tested patch cords ensure optimal network performance. Dowell’s products consistently meet or exceed TIA/EIA-568-B performance requirements, providing assurance of interoperability with OEM channels and backward compatibility with legacy systems.
Compliance with Latest FTTH Standards
Dowell’s commitment to quality is evident in the Cable Patch Cord’s adherence to the latest FTTH standards. Fiber patch cord quality tests reference IEC technical standards, which specify critical parameters such as fiber end face geometry and performance metrics. These parameters ensure that optical connectors maintain signal integrity and minimize loss.
| Standard/Certification | Scope |
|---|---|
| EIA/TIA 568, 569, 570, 606, 607 | Commercial and residential telecommunications cabling, pathways, administration, bonding, grounding, and testing |
| ISO/IEC 11801, 14763-1/2/3, IEC 61935-1 | International standards for copper and fiber optic cabling systems |
| ISO9001, UL, ETL, CE, RoHS, CPR | Product quality, safety, environmental, and fire resistance certifications |
Certification modes depend on fire rating classes, with factory audits and annual product sampling required for higher ratings. Testing standards such as ISO 1716, EN 50399, and EN 61034-2 are conducted in official EU notified body labs. Compliance declarations enable CE marking for products meeting EN 50575, and factory production control reviews ensure ongoing compliance.
Durability and Long-Term Reliability
Dowell’s Cable Patch Cord stands out for its durability and long-term reliability in FTTH networks. The product undergoes rigorous testing protocols, including end-to-end attenuation tests, Optical Time-Domain Reflectometer (OTDR) analysis, and connector loss measurements. These tests ensure minimal signal degradation and verify fiber integrity.
| Testing Method | Purpose |
|---|---|
| End-to-end attenuation tests | Measure total signal loss affecting speed and bandwidth, ensuring minimal degradation. |
| OTDR | Detect faults and verify fiber integrity, crucial for long-term performance. |
| Connector loss measurement | Ensure connections maintain optimal signal quality, preventing signal degradation. |
Dowell’s patch cords maintain signal quality even after 500 plug-ins and pull-outs, demonstrating exceptional mechanical strength. The helically stranded cable design reduces bending stress, while crush-resistant jacketing withstands environmental challenges such as moisture, abrasion, and temperature fluctuations. Regular inspections and advanced monitoring software help maintain network integrity over time.
Tip: Durable, weather-proof fiber optic cables contribute to fewer repairs and less frequent maintenance, supporting reliable FTTH service for years.
The 2.0×5.0mm SC UPC Cable Patch Cord stands out for FTTH in 2025.
- The LinkIQ tester confirms high-speed connectivity from 10 Mb/s to 10 Gb/s, validating performance.
- The Long Lines case study demonstrates long-term value and customer satisfaction in FTTH projects.
| Metric | HC-Series Cable | Ribbon Cable |
|---|---|---|
| Bit Error Rate | Error-free | Degrades |
| Mechanical Strength | High | Lower |
| Installation Speed | Fast | Slower |
