You face more complex wiring needs in buildings than ever before. Multi-core armored cables meet these demands by offering strong safety, reliability, and compliance. As smart buildings and IoT systems become common, the market for these cables grows quickly. The value of the global market reached $36.7 billion in 2024 and continues to rise. You can find many types of indoor multi-core armored cables, including indoor multi-core armored fiber optic cable. Indoor multi-core armored cable price reflects their advanced features and growing demand.
Key Takeaways
- Multi-core armored cables provide strong protection for indoor wiring, guarding against fire, impact, and damage from rodents.
- These cables offer long-lasting durability, reducing repair needs and saving money over time.
- They meet strict 2025 building codes and safety standards, ensuring your wiring stays up to date and compliant.
- Different types of armored cables fit various needs, such as steel armor for busy areas, aluminum for light weight, and LSZH for fire safety.
- Choosing the right cable involves matching voltage, environment, and future plans to keep your building safe, reliable, and ready for new technology.
What Are Multi-core Armored Cables?
Definition and Structure
You may wonder what makes multi-core armored cables different from regular cables. These cables have several insulated wires, or “cores,” bundled together inside a single protective jacket. Each core can carry power or data, making the cable useful for many building systems. The armor layer, usually made of steel or aluminum, wraps around the inner cores. This layer protects the cables from damage, even in busy indoor spaces.
You can see the structure and main features of these cables in the table below:
| Aspect | Details |
|---|---|
| Cable Structure | Multi-strand aramid fiber reinforcement; mini 250μm optical fibers bundled and jacketed with PVC or LSZH; steel wire armor with aramid reinforcement; outer PVC or LSZH sheath |
| Optical Characteristics | Attenuation at various wavelengths (e.g., ≤0.36 dB/km @1310nm), Bandwidth (≥500 MHz·km @850nm), Numerical aperture (0.200±0.015NA), Cable cutoff wavelength (≤1260nm) |
| Technical Parameters | Fiber counts (24, 48), Cable diameter (5.0-6.0 mm), Tensile strength (300/750 N), Crush resistance (200/1000 N/100m), Bending radius (20D static, 10D dynamic) |
| Environmental Characteristics | Operating temperature range: -20℃ to +60℃, Installation temperature: -5℃ to +50℃ |
| Standards Compliance | YD/T 2488-2013, IECA-596, GR-409, IEC794, UL OFNR, OFNP certifications |
| Applications | Indoor horizontal and vertical wiring, LAN networks, optical communication equipment, optical patch panels, backbone and access cables inside buildings |
You will find many types of indoor multi-core armored cables on the market. Each type has a unique structure to fit different needs in modern buildings.
Unique Protective Features
Multi-core armored cables offer strong protection for your building’s wiring. You can trust these cables because they pass strict laboratory tests:
- Adults can walk on the cables or even drive a 1500 kg car over them without signal loss.
- A razor blade cannot cut through the steel armor.
- Dropping a 23 kg weight onto the cable does not cause damage.
- The cable can handle a 15 lb pulling force without breaking.
- Light only escapes at the intended output, keeping your data safe.
These features make the types of indoor multi-core armored cables a smart choice for safety and reliability. You can use them in places where you need extra protection, such as offices, schools, or hospitals. When you compare the types of indoor multi-core armored cables, you will see that each one offers special benefits for different indoor environments.
Types of Indoor Multi-core Armored Cables
You can find several types of indoor multi-core armored cables on the market. Each type has special features that make it suitable for different building needs. Knowing the differences helps you choose the right cable for your project.
Steel Wire Armored (SWA) Cables
Steel Wire Armored (SWA) cables use a layer of steel wires to protect the inner cores. You often see these cables in places where you need strong mechanical protection. The steel armor keeps the cable safe from impacts, crushing, and even rodents. SWA cables work well in commercial buildings, schools, and hospitals. You can use them in areas with heavy foot traffic or where equipment might bump into the wiring. This type is one of the most common types of indoor multi-core armored cables because it offers high durability and safety.
Tip: SWA cables are a great choice if you need extra protection for your wiring in busy indoor spaces.
Aluminum Wire Armored (AWA) Cables
Aluminum Wire Armored (AWA) cables use aluminum wires for the armor layer. These cables are much lighter than steel-armored cables. You will find them especially useful in residential buildings. Aluminum cables cost less and are easier to install because of their light weight. Comparative studies show that aluminum armored cables offer excellent electrical and thermal conductivity. They also have a natural oxide layer that protects against corrosion, which is helpful in moist or humid environments. When you use AWA cables, you lower your project costs and make installation easier. These types of indoor multi-core armored cables are also more environmentally friendly because aluminum is easy to recycle.
Low Smoke Zero Halogen (LSZH) Armored Cables
Low Smoke Zero Halogen (LSZH) armored cables focus on safety during a fire. The outer sheath does not release harmful halogen gases or thick smoke when exposed to heat. You can trust these cables in places where people gather, such as offices or schools. LSZH cables have a high Limited Oxygen Index (LOI), which means they resist burning and produce less smoke. Tests show that LSZH cables have low heat release rates and minimal smoke emission. These features help keep escape routes clear and reduce health risks during a fire. Many building codes now require LSZH types of indoor multi-core armored cables for new projects.
| Cable Type | Main Feature | Best Use Case |
|---|---|---|
| SWA | Strong steel armor | High-traffic or high-risk areas |
| AWA | Lightweight, cost-effective | Residential wiring |
| LSZH | Low smoke, no halogen | Public and enclosed spaces |

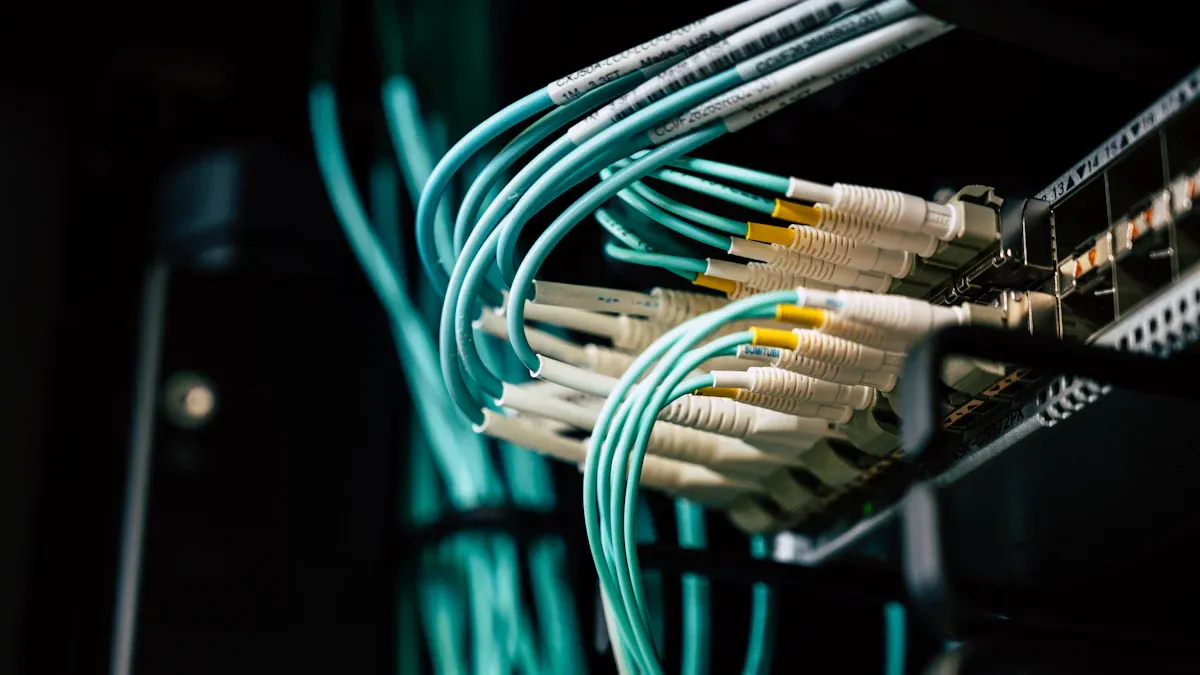

Armored Fiber Optic Multi-core Cables
You may notice that modern buildings need fast and reliable data connections. Armored fiber optic multi-core cables help you meet these needs. These cables use strong armor, such as steel or aluminum, to protect the delicate fibers inside. You can use them in places where cables might face bumps, pressure, or even rodents. The armor keeps your data safe and your network running smoothly.
When you look at the types of indoor multi-core armored cables, fiber optic versions stand out for their ability to handle high-speed data. You get several fibers in one cable, which means you can send more information at once. If one fiber stops working, the others keep your network online. This design gives you extra peace of mind.
Here are some reasons why you might choose armored fiber optic multi-core cables for your building:
- You get strong mechanical protection, so your cables last longer even in tough spots.
- The multi-core design gives you backup, so your network stays up even if one fiber fails.
- These cables keep your signal clear and fast, which is great for video calls, streaming, and smart building systems.
- You save time during installation because the cables are flexible and easy to handle.
- Over time, you spend less on repairs and maintenance because the cables resist damage.
Note: Many schools, offices, and even mining sites have used armored fiber optic multi-core cables to boost network speed and reliability. For example, a university improved its campus network by using these cables for long-distance connections. A city construction project kept its communication lines strong, even in rough outdoor conditions.
You can find products like OWIRE’s 12 strand OM3 armored fiber cable, which supports high-speed data over long distances. This type of cable helps you prepare your building for future technology needs. When you compare the types of indoor multi-core armored cables, fiber optic options give you a strong mix of speed, safety, and value.
Key Benefits for Indoor Building Wiring
Enhanced Safety and Fire Protection
You want your building to be as safe as possible. Multi-core armored cables help you reach this goal. These cables use special materials and designs to stop fires from spreading. The armor layer acts as a barrier, keeping heat and flames away from the inner wires. This feature protects both people and property.
You can trust these cables because they pass strict fire safety tests. Safety organizations like UL Solutions and the European Union require cables to meet tough standards. Here are some certifications that show the fire protection capabilities of multi-core armored cables:
- UL certification by UL Solutions proves the cables meet fire retardancy and safety requirements. These tests follow NFPA standards.
- CPR certification in the European Union ensures the cables meet fire safety performance standards. You will see the CE symbol on certified products.
- Both UL Listed and CPR Euroclass ratings require cables to pass tests that check for reduced fire spread and low smoke production.
These certifications mean you can rely on multi-core armored cables to keep your building safer during a fire. You also help protect people from harmful smoke and gases. In places where many people gather, such as schools or offices, this level of safety is essential.
Superior Durability and Longevity
You need cables that last for years without problems. Multi-core armored cables give you this peace of mind. The armor layer shields the inner wires from physical damage. You can install these cables in busy areas, and they will resist crushing, bending, and even rodent bites.
The strong construction means you spend less time and money on repairs. You avoid frequent replacements, which saves you effort and cost. The cables also handle changes in temperature and humidity well. You can use them in many types of buildings, from homes to factories.
Tip: Choosing multi-core armored cables helps you build a wiring system that stands the test of time. You get reliable performance year after year.
Compliance with 2025 Building Codes and Standards
You want your building to meet all the latest rules. Multi-core armored cables make this easy. These cables follow strict international and national standards. For example, they conform to IEC 60502 and IEC 60228, which set the rules for power cable construction and conductor quality. Flame retardant versions meet IEC 60332-3, so you know they are safe for fire-sensitive areas.
You also see compliance with Chinese national standards like GB/T 12706 and GB/T 18380-3. These standards cover everything from voltage ratings to insulation quality. Multi-core armored cables are rated for 0.6/1kV voltage, which fits most indoor power needs. You find them used in high-density and fire-sensitive places, such as subways, power stations, and high-rise buildings.
- Copper conductors and PVC insulation rated at 75°C support safe operation.
- Armored options, like steel wire or tape, add extra protection for multi-core designs.
- Technical details, such as maximum conductor temperature and minimum bending radius, show the cables meet strict performance standards.
By choosing multi-core armored cables, you make sure your wiring meets the requirements for 2025 and beyond. You avoid problems with inspections and keep your building safe and up to code.
Improved Reliability for Critical Systems
You depend on critical systems every day. These include emergency lighting, fire alarms, security networks, and building automation. If these systems fail, the safety and comfort of everyone in the building can be at risk. Multi-core armored cables help you keep these systems running smoothly, even when conditions get tough.
Multi-core armored cables use strong materials and smart designs. The armor layer protects the inner wires from damage caused by impacts, bending, or even rodents. This means you can trust these cables to keep working, even in places where accidents might happen. You do not have to worry about frequent repairs or sudden failures.
Studies show that the type of insulation in a cable makes a big difference in how often repairs are needed. For example, cables with cross-linked polyethylene (XLPE) insulation have lower repair rates than older paper-insulated types. The research also shows that the material of the conductor, whether copper or aluminum, does not change the repair rate much if the insulation is good. This means you can focus on choosing cables with strong insulation and armor for the best reliability.
When you look at how cables perform during earthquakes or other hazards, you see that armored cables stand up better. In areas with ground shaking, repair rates stay very low. Even in places with soil movement, armored cables with modern insulation keep working longer than other types. The age of the cable does not make a big difference, so you get lasting value from your investment.
Tip: Choose multi-core armored cables with XLPE insulation for your building’s most important systems. You get strong protection and fewer repairs over time.
You can see the benefits of multi-core armored cables for critical systems in this table:
| Feature | Benefit for Critical Systems |
|---|---|
| Strong armor layer | Protects against physical damage |
| Advanced insulation (like XLPE) | Reduces repair rates |
| Multi-core design | Supports multiple circuits in one |
| Stable performance in hazards | Keeps systems running during events |
| Long service life | Lowers maintenance and replacement |
You want your building’s vital systems to work every day, no matter what happens. Multi-core armored cables give you the reliability you need. They help you avoid costly downtime and keep everyone safe and connected.
Multi-core Armored Cables vs. Other Cable Types
Comparison with Single-core Cables
When you choose cables for indoor wiring, you often compare multi-core armored cables with single-core cables. Multi-core armored cables give you more flexibility and better protection. You can use them in places where cables need to bend or move. Single-core cables work best in fixed positions and do not handle movement well.
Here is a table to help you see the differences:
| Feature / Factor | Multi-core Armored Cables | Single-core Cables |
|---|---|---|
| Flexibility | Excellent, good for complex wiring | Low, best for fixed installations |
| Anti-interference | Strong, due to shielding and twisted pairs | Less, mainly for power transmission |
| Mechanical Protection | Armor protects against damage | No armor, less protection |
| Current Carrying Capacity | Moderate, good for signals and control | Higher, better for power |
| Fatigue Resistance | High, resists bending and movement | Lower, best for static use |
| Lifespan (Fixed Installation) | 15-20 years | 25-30 years |
| Lifespan (Mobile Use) | 3-5 years | Not suitable |
| Cost | Higher, due to armor and complexity | Lower, simpler installation |
| Signal Transmission | Excellent for high-frequency signals | Less suitable for high-frequency signals |
You can see that multi-core armored cables offer more features for modern buildings, especially where flexibility and protection matter.
Comparison with Non-armored Cables
Non-armored cables do not have a protective layer. You might use them in safe, low-risk areas. However, they cannot protect against crushing, impacts, or rodents. Multi-core armored cables have a strong armor layer. This armor keeps your wiring safe in busy or harsh environments.
Tip: If you want your cables to last longer and stay safe from damage, choose armored cables for areas with more risks.
Cost-effectiveness and Value
You may notice that multi-core armored cables cost more at first. However, they save you money over time. These cables reduce the need for repairs and lower the risk of downtime. Their strong design means you spend less on maintenance. You also avoid costly replacements.
Studies show that cables with better fire resistance and durability, like mineral insulated or steel tape armored cables, help you meet safety rules and can even lower insurance costs. As more buildings use smart systems and need reliable wiring, the value of armored cables keeps growing. You get a good return on your investment because these cables last longer and protect your building’s systems.
Investing in multi-core armored cables means you choose safety, reliability, and long-term savings for your building’s wiring.
How to Choose the Right Multi-core Armored Cable
Selecting the right multi-core armored cable for your building project in 2025 requires careful planning. You want to make sure your wiring meets today’s needs and tomorrow’s demands. Let’s look at the key steps you should follow.
Assessing Voltage and Current Requirements
You need to match your cable to the voltage and current your system will use. Start by checking the power needs of your equipment and the total load on each circuit. Multi-core armored cables come in different voltage ratings, such as low, medium, and high voltage. Each type fits a specific use, like residential, commercial, or industrial wiring.
Engineers use advanced methods to test and model cable performance. For example, they use 3D finite element models to analyze how cables handle current and voltage at different frequencies. These tests measure losses, impedance, and how the cable’s armor affects performance. Results show that the difference between simulation and real-world measurements stays below 10%. This means you can trust the ratings you see on cable labels.
You also want to consider how heat affects your cables. Special modeling methods help predict how cable temperature changes with different loads. These methods use real data from both lab and field tests. They help you choose a cable that will not overheat, even if your building’s power needs grow.
Tip: Always check the cable’s rated voltage and current. Make sure it matches or exceeds your system’s requirements. This helps prevent overheating and keeps your building safe.
Here is a quick look at how technical testing supports your choice:
| Aspect | Description / Result |
|---|---|
| Modeling Approach | 3D finite element models for frequency-domain analyses |
| Validation Parameters | Total losses, series impedance, sheath induced currents |
| Losses Accuracy | Differences below 10% |
| Impedance Accuracy | Differences below 5% |
| Measurement Method | Phase current and total power measured experimentally |
| Simulation vs Measurement | Good agreement overall |
Considering Environmental Factors
You must think about where you will install your cables. The environment can affect cable performance and lifespan. For example, cables in humid or corrosive areas need extra protection. You might choose aluminum armor for its corrosion resistance or steel armor for its strength.
Different installation types also matter. Underground cables need strong armor to protect against soil pressure and moisture. Cables in ceilings or walls may need to resist fire and produce little smoke. If you install cables in places with high foot traffic or risk of impact, you want a cable with a tough outer layer.
Market trends show that government regulations and safety standards play a big role in cable selection. Many new rules require armored cables in public, underground, or hazardous buildings. You also see more demand for cables that can handle harsh environments, especially as cities grow and buildings become more complex.
Here is a table that shows how market trends and environmental factors guide your choice:
| Market Trend Factor | Description & Impact on Cable Selection |
|---|---|
| Government Regulations & Safety Standards | Mandatory use in underground, hazardous, and public buildings ensures compliance and safety, influencing armored cable choice. |
| Construction Industry Demand | Urbanization and infrastructure growth require durable, flexible cables for harsh environments. |
| Armoring Material Choices | Steel for durability, aluminum for lightweight and corrosion resistance, fiber for flexibility—selection depends on environment and cost. |
| Installation Types | Underground, aerial, and submersible installations require different cable protections and specifications. |
Note: Always match your cable’s features to the environment. This helps your wiring last longer and perform better.
Planning for Future Expansion and Upgrades
You want your building’s wiring to support future changes. Smart buildings, automation, and new safety rules mean your needs may grow. Multi-core armored cables help you prepare for these changes.
Many modern cables use compact designs that save space and make upgrades easier. For example, ceramified cables offer strong fire resistance and keep circuits working during emergencies. These cables meet strict safety rules and support reliable power and data transmission. You also find cables made with halogen-free and eco-friendly materials. These features help your building meet future environmental standards.
Some cables, like Southwire’s MCAP and LAPP’s ÖLFLEX® FIRE, show how new designs support both safety and smart building systems. These cables can handle high temperatures and keep data flowing, even during a fire. This means your building stays safe and connected, even as you add new systems or expand.
- Multi-core ceramified cables fit complex electrical systems and save space.
- They offer strong durability and fire resistance, keeping circuits safe during emergencies.
- These cables meet new safety rules and support upgrades without major rewiring.
- Halogen-free and high-temperature materials protect your building from future risks.
- Advanced cables keep power and data flowing, even in smart and automated buildings.
