144F 1 in 4 out Vertical Heat-Shrink Fiber Optic Closure

Short Description:

This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

Dome-to-base design; up to 6 pieces splice trays, hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting or directly buried.

Model: FOSC-400-A4

Port: 1+4

Protection Level: IP68

Max. Capacity: 144F

Size: 422.3mm*Φ219.2mm

Material: Strengthen Polymer Plastic

Color: Black

Version: Vertical

Send email to us

Product Detail

Product Tags

Specification:

Model:		GJS03-M1AX- 144
Size: With clamp’s biggest outer dia.	422.3*219.2 mm	Raw material	Dome, Base： modified PP, clamp：Nylon +GF Tray: ABS Metal parts：Stainless steel
Entry ports number:	1 oval port， 4 round ports	Available cable dia.	Oval port：available for 2 pcs, 10~29mm cables Round ports：Each available for 1pc 6-24mm cable
Max. tray number	6 trays	Base sealing method	Heat-shrink
Tray capacity：	24F	Applications:	Aerial, directly buried, Wall/pole mounting
Max. closure splice capacity	144 F	IP grade	68

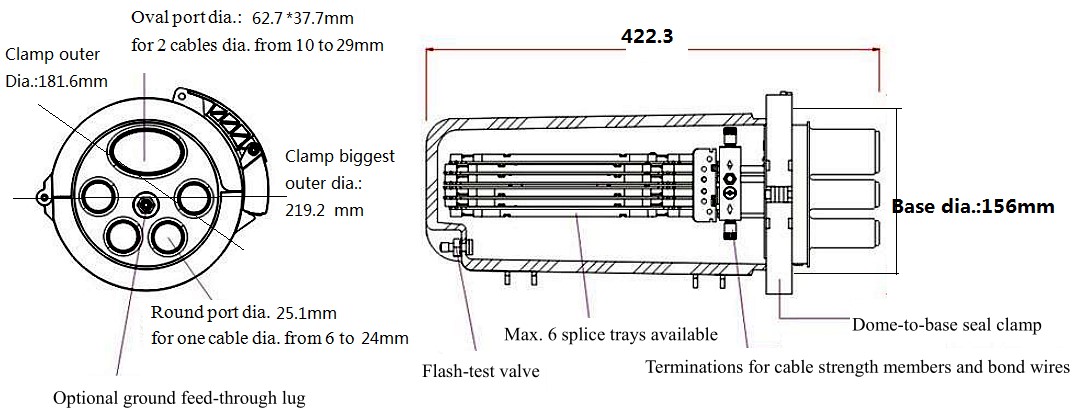

Outer Structure

Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+65 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa
3. Axial Tension: >1000N/1min
4. Flatten Resistance: 2000N/100 mm (1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
7. Durability：25 years

Main components:
