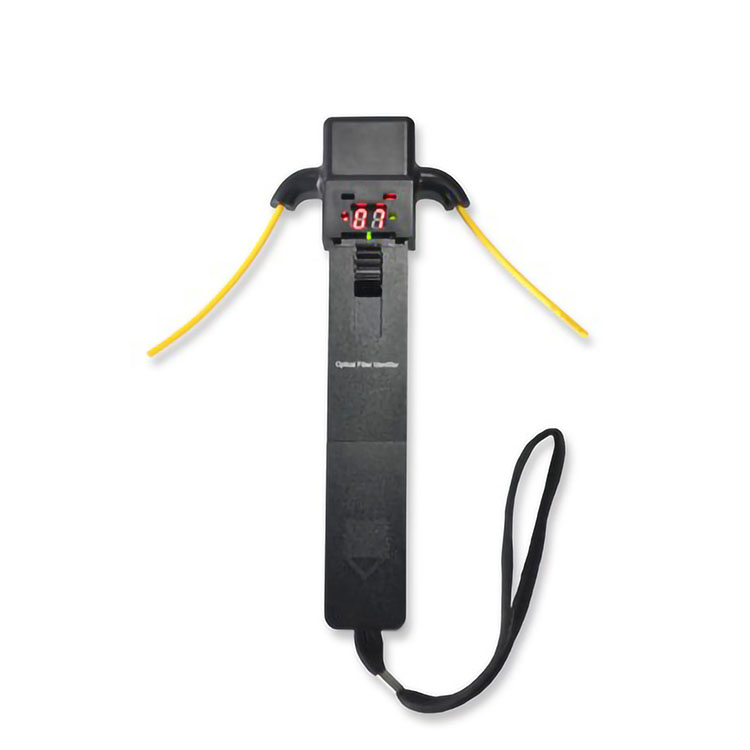

Optical Fiber Identifier

Short Description:

Our Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bend fiber. When the traffic is present, the intermittently audible tone is activated.

  • Model: DW-OFI
  • Product Detail

    Product Tags

    This optical fiber identifier also recognizes the modulation like 270Hz, 1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. This optical fiber identifier is powered by a 9V alkaline battery.
    Identified   Wavelength Range 800-1700   nm
    Identified   Signal Type CW, 270Hz±5%,1kHz±5%,2kHz±5%
    Detector   Type Ø1mm   InGaAs 2pcs
    Adapter   Type Ø0.25   (Applicable for Bare Fiber),Ø0.9   (Applicable for Ø0.9 Cable )
    Ø2.0   (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable )
    Signal   Direction Left &   Right LED
    Singe   Direction Test Range

    (dBm,   CW/0.9mm bare fiber)

    Signal   Power Test Range

    (dBm,   CW/0.9mm bare fiber)

    Signal   Frequency Display (Hz) 270, 1k,   2k
    Frequency   Test Range

    (dBm,   Average Value)

    Ø0.9,   Ø2.0, Ø3.0 -30~0   (270Hz,1KHz)
    -25~0   (2KHz)


    -25~0 (270Hz,1KHz)
    -20~0   (2KHz)
    Insertion   Loss(dB, Typical Value) 0.8   (1310nm)
    2.5   (1550nm)
    Alkaline   Battery(V) 9
    Operating   Temperature(℃) -10-+60
    Storage   Temperature(℃) -25-+70
    Dimension   (mm) 196x30.5x27
    Weight (g) 200
