Optical Light Source

Short Description:

DW-13109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including 1310/1550nm wavelengths for single mode fiber as well as other wavelengths according to customer needs. Together with the DW-13235 optical power meter, it is a perfect solution for the fiber optic network characterization.

  • Model: DW-13109
  • Product Detail

    Product Tags

    Type DW-13109
    Wavelengths(nm) 1310/1550
    Emitter Type FP-LD,LED or others please specify
    Typical Output Power (dBm) 0 -7dBm for LD, -20dBm for LED
    Spectral Width(nm) ≤10
    Output Stability ±0.05dB/15mins; ±0.1dB/ 8hours
    Modulation Frequencies CW,2Hz CW,270Hz,1KHz,2KHz
    Optical Connector FC/ universal adaptor FC/PC
    Power Supply Alkaline Battery(3 AA 1.5V batteries)
    Battery Operating Time(hour) 45
    Operating Temperature(℃) -10~+60
    Storage Temperature(℃) -25~+70
    Dimension(mm) 175x82x33
    Weight (g) 295

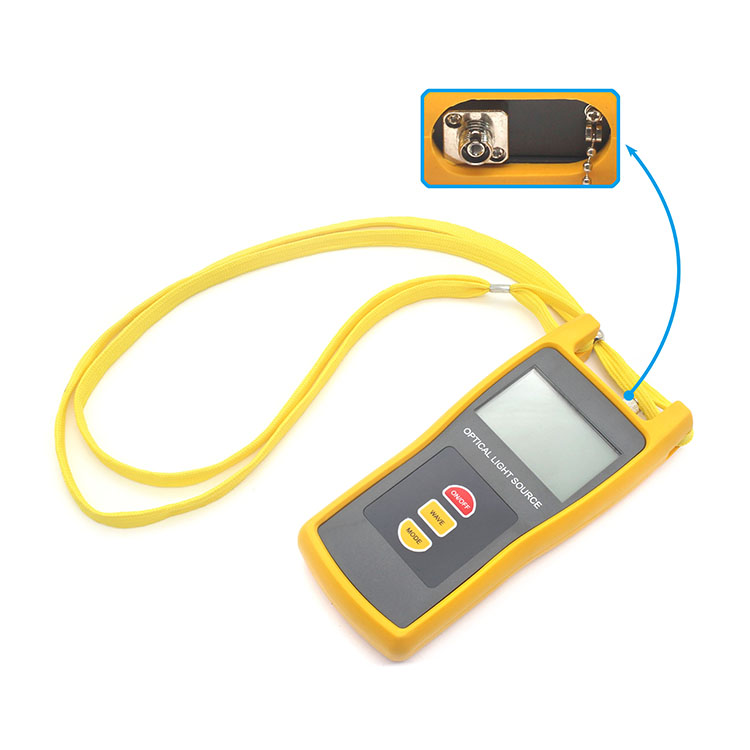

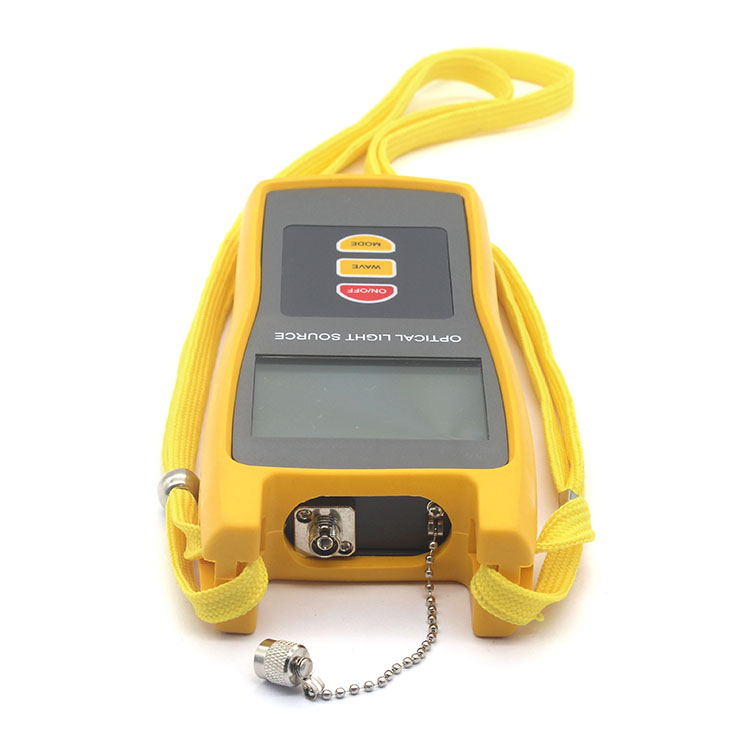

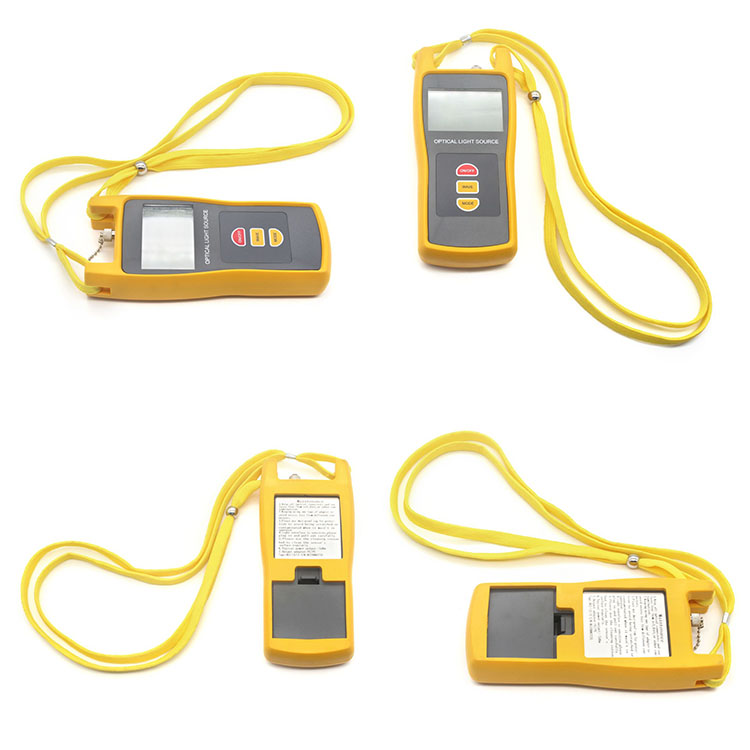

    DW-13109 Handheld Light Source is designed for optimal use with   DW-13208 Optical Power Meter for measuring optical loss on both single mode   and multi-mode fiber cable.
