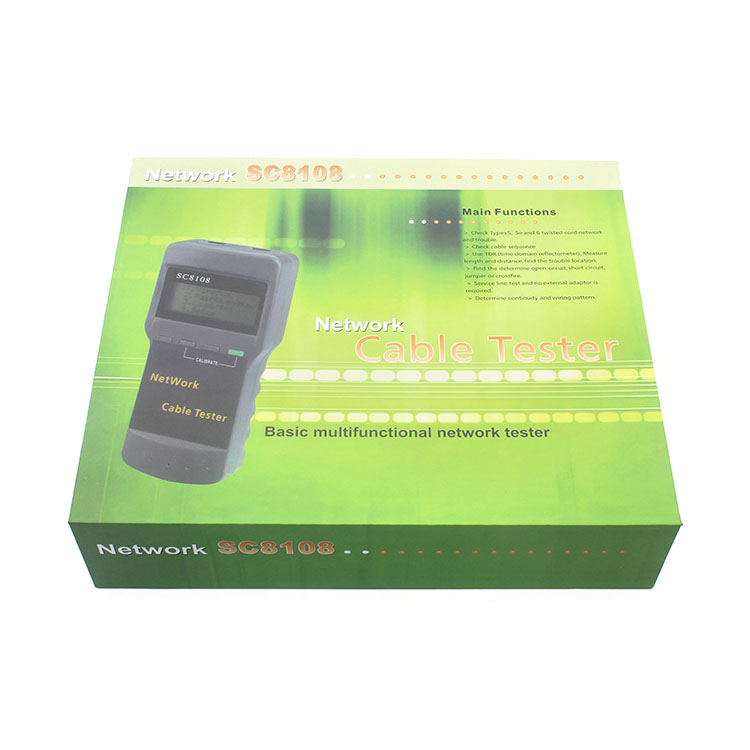

SC8108 Network Cable Tester

Short Description:

It can detect wiring failures for 5E, 6E coaxial cables and telephone wires including opening, short, cross, reverse, and crosstalk.

  • Model: DW-8108
  • Product Detail

    Product Tags

    ●    WireMap: It obtains the continuity for each one of the wires of the cable and the pin-out of the same ones. The result obtained is a pin-out graphic on the screen from pin-A to pin-B or error for each of the pins. It also shows those cases of crossing between two or more hilos

    ●    Pair-and-Length: Function that allows to calculate the length of a cable. It has TDR (Time Domain Reflectometer) technology that measures the distance of the cable and the distance to a possible error if there is one. In this way you can repair damaged cables already installed and without having to re-install a whole new cable. It works at the level of pairs.

    ●    Coax/Tel: To check telephone and coax cable sales Check the continuity of it.

    ●    SetUp: Configuration and calibration of the Network Cable Tester.

    Transmitter Specifications
    Indictor LCD 53x25 mm
    Max. Distance of Cable Map 300m
    Max. Working Current Less   than 70mA
    Compatible Connectors RJ45
    Faults LCD Display LCD display
    Battery Type 1.5V AA Battery *4
    Dimension (LxWxD) 184x84x46mm
    Remote Unit Specifications
    Compatible Connectors RJ45
    Dimension (LxWxD) 78x33x22mm
