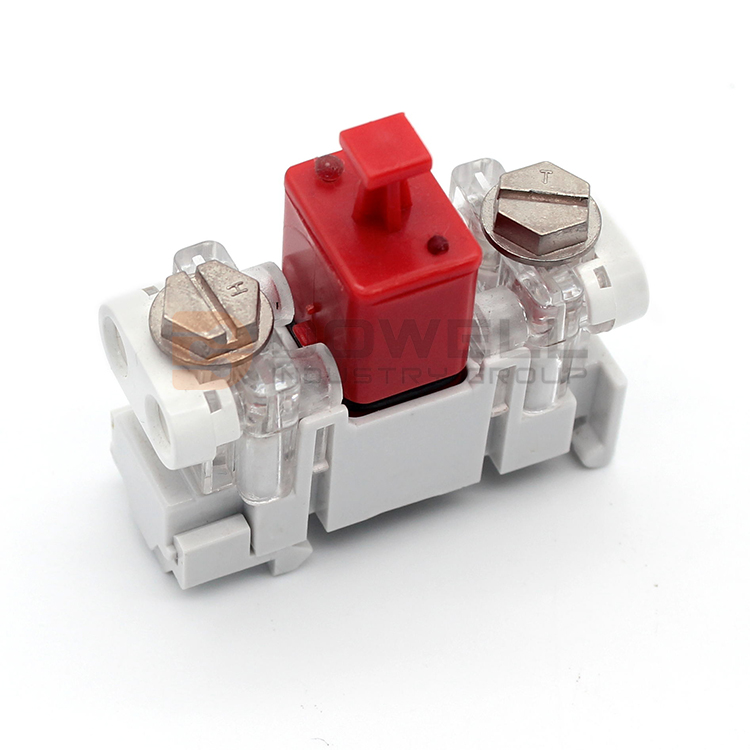

1-Pair Subscriber Connection Unit VX-SB With GDT Protection
- Product Description
| Housing Material | PC (UL 94V-0) | Contacts Conductor |
Phosphor bronze,surface nickel or silver plated |
| Potting Sealant | Epoxy resin | Terminating Screws | Zinc alloy,plating nickel |
| Cable and Plug Sealant | Silicone fluid,melting point >90℃ | Die-Electric Intensity | DC 1000V (AC 700V), nospark over and fly arc in one min |
| Gauge Range | 0.4-1.2mm diameter | Insulation Diameter | 5mm maximum diameter |
| Wire Pull Out Force | ≥50N | Termination Torque | ≤1N/m |
| Plug Insertion Force | <50N | Plug Withdrawal Force | <35N |
| Temperature Range | -30℃~60℃ | Relative Humidity | 95% |
1-Pair Drop Wire (STB) Module Without Protection is a copper pair connector specifically designed to fit onto 35mm DIN rails, It is designed to connect 2 copper pairs and has common features such as:
1.Water proof, sealed IDC termination
2.Disconnection and testing facilities
3.Tooless termination
4.Equip with 3 pole 230V gas tube arrester with fail-safe protection
The subscriber connector unit is used for the connection of an outdoor to an indoor drop wire. It allows for circuit testing in both network directions.The box provides environmental protection. The product is specially recommended for aggressive environmental conditions,terminations where future requirements may include different types of protection.
