8-Pair Cat. 5 STG Module (Disconnection)

Short Description:


  • Model: DW-STG
  • Product Detail

    Product Tags

    Product Video

    ia_20500000032

    Description

    Insulation Resistance (500V) >10 GΩ Contact Resistance 1 mΩ
    Leading Through Resistance (20mV / 10mA, 50mm cable) 26 AWG (0,4 mm) < 20 mΩ

    24 AWG (0,5 mm) < 16 mΩ

    23 AWG (0,6 mm) < 12 mΩ

    20 AWG (0,8 mm) < 8 mΩ

    Body Material Thermoplastic
    Contact Material Bronze
    Dielectric Strength (50Hz) 5 KV Thickness 14 mm

    STG 2000 modules are the lastest evolution of the STG range of IDC (Insulation Displacement Contact) modules that can be snapped onto standard backmount frames (European 8-/10 pair, 16 mm or 14 mm pitch profile are available upon request).

    Wire termination and wire removal are easily operated with Termination Tool SOR OC.Cables are managed from the rear and jumpers from the side. The base of the module offers cable and jumper strain relief facilities.

    Straight IDC technology offers reliable and outstanding performance like multiple retermination, wire retention and gas-tight connection. The module can connect solid copper conductors in a range of diameters from 26 AWG (0.4mm) to 20 AWG (0.8mm) with a maximum insulation sheath of 15 AWG (1.5mm).

    Specific contacts for stranded wiresare available upon request.

    pictures

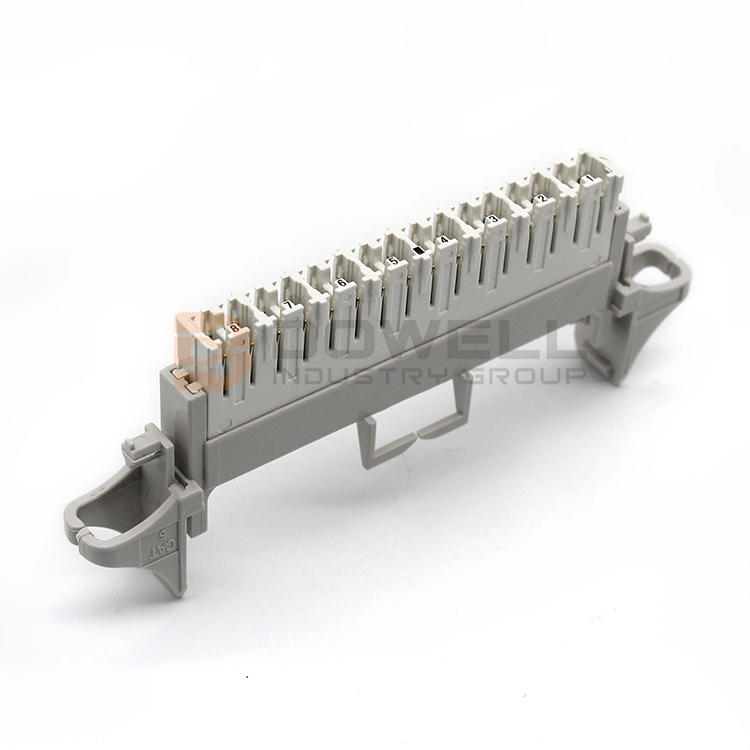

    ia_24500000035

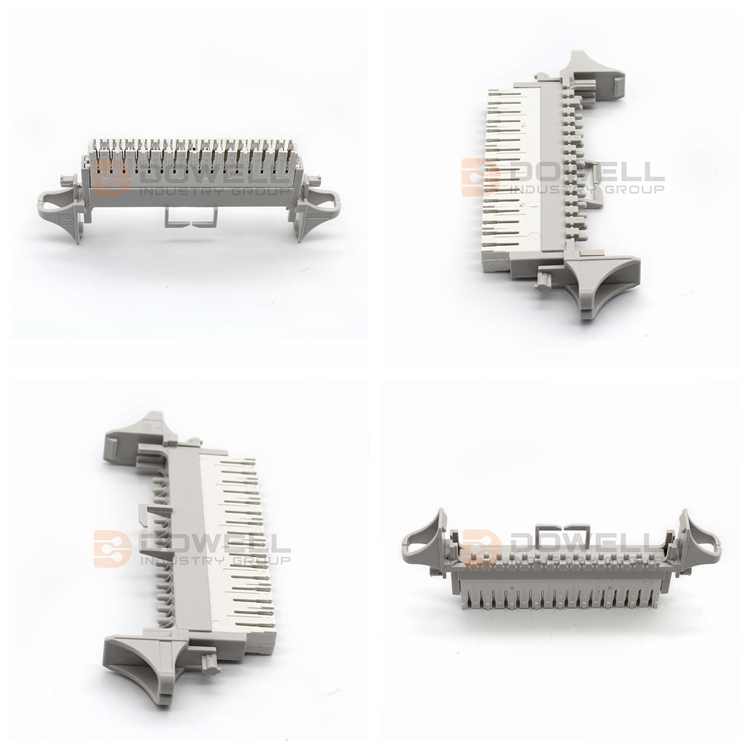

    ia_24500000036

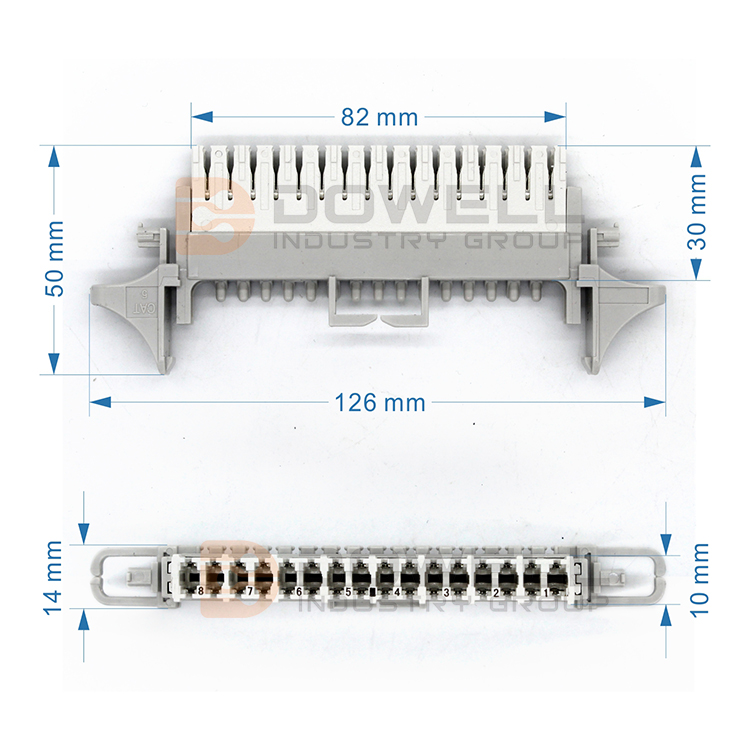

    ia_24500000037

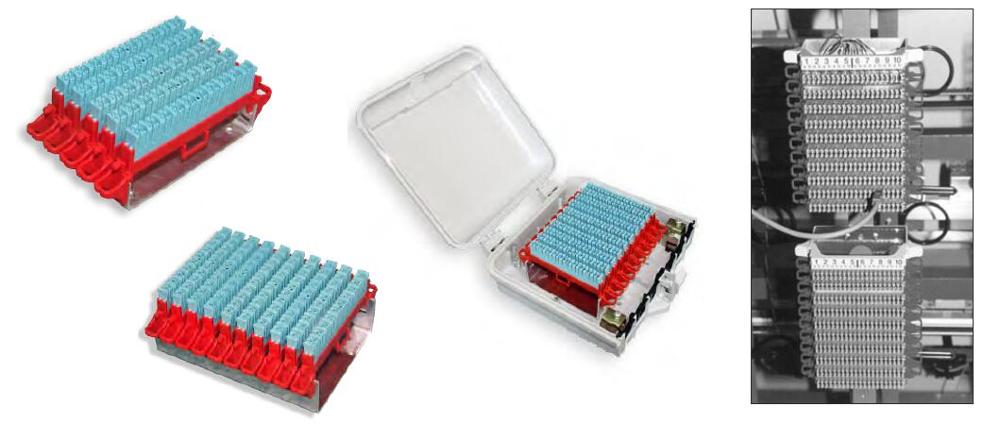

    Application

    ia_24500000039

    This module offers Cat. 5 transmission performance as a standard. As a result this module can be used in any modern network and is fully compatible with various applications.
