Fiber Fusion Heat Shrinkable Tube Splicing Sleeve

Short Description:

Fiber Optic Splicing Protection Sleeve 40mm 60mm Rohs Complied

Pack:100pcs/Bag

Moisture resistant for environmental protecion clear sleeve make it easy to detect splice before shrinkage.

Easily use and avoid any damages to the oprical fiber during installation.

Sealing structure provides good performance to the splicing in the environment with temperature and humidity.

Model: DW-1037

Send email to us

Product Detail

Product Tags

Product Video

Description

Consist of cross-linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.

● Working Temperature: -45~ 110℃

● Shrinking temperature range: 120℃

● Standard color: Clear

● Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple

Properties	Test Method	Typical Data
Tensile Strength（MPa）	ASTM D 2671	≥18Mpa
Ultimate Elongation (%)	ASTM D 2671	700%
Density (g/cm2)	ISO R1183D	0.94 g/cm2
Dielectric Strength (KV/mm)	IEC 243	20KV/mm
Dielectric Constant	IEC 243	2.5max
Longitudinal Change (%)	ASTM D 2671	±5%

Single Fiber (mm)

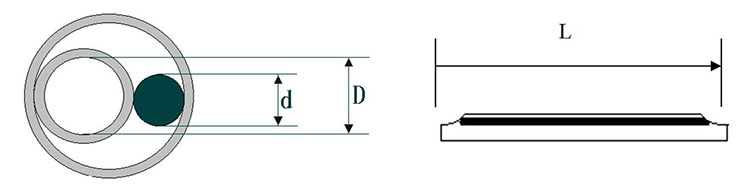

Model	Splice Protection Sleeves(After Shrinking)		Fusion Tubing		Steel Rod
Model	Outer Diameter(±0.2)	Length(±1)	Inner Diameter(±0.1)	Length(±1)	OuterDiameter (±0.1)	Length(±1)
DWFP-H-61x1.5x3.0	3.0	61	1.5	61	1.5	55
DWFP-H-45x1.5x3.0	3.0	45	1.5	45	1.5	40
DWFP-H-40x1.5x3.0	3.0	40	1.5	40	1.5	35
DWFP-H-25x1.5x3.0	3.0	25	1.5	25	1.5	20
DWFP-H-61x1.2x2.6	2.6	61	1.5	61	1.2	55
DWFP-H-45x1.2x2.6	2.6	45	1.5	45	1.2	40
DWFP-H-40x1.2x2.6	2.6	40	1.5	40	1.2	35
DWFP-H-25x1.2x2.6	2.6	25	1.5	25	1.2	20
DWFP-H-61x1.0x2.4	2.4	61	1.5	61	1.0	55
DWFP-H-45x1.0x2.4	2.4	45	1.5	45	1.0	40
DWFP-H-40x1.0x2.4	2.4	40	1.5	40	1.0	35
DWFP-H-25x1.0x2.4	2.4	25	1.5	25	1.0	20
DWFP-H-40x0.8x2.2	2.2	40	1.5	40	0.8	40
DWFP-H-25x0.8x2.2	2.2	25	1.5	25	0.8	25
DWFP-H-18x0.8x2.2	2.2	18	1.5	18	0.8	18
DWFP-H-40x0.5x1.3	1.3	40	0.35	40	0.5	40
DWFP-H-25x0.5x1.3	1.3	25	0.35	25	0.5	25
DWFP-H-18x0.5x1.3	1.3	18	0.35	18	0.5	18
DWFP-E-61x1.5x3.0	3.0	61	1.5	61	1.5	55
DWFP-E-45x1.5x3.0	3.0	45	1.5	45	1.5	40
DWFP-E-40x1.5x3.0	3.0	40	1.5	40	1.5	35
DWFP-E-25x1.5x3.0	3.0	25	1.5	25	1.5	20
DWFP-E-61x1.2x2.6	2.6	61	1.5	61	1.2	55
DWFP-E-45x1.2x2.6	2.6	45	1.5	45	1.2	40
DWFP-E-40x1.2x2.6	2.6	40	1.5	40	1.2	35
DWFP-E-25x1.2x2.6	2.6	25	1.5	25	1.2	20
DWFP-E-61x1.0x2.4	2.4	61	1.5	61	1.0	55
DWFP-E-45x1.0x2.4	2.4	45	1.5	45	1.0	40
DWFP-E-40x1.0x2.4	2.4	40	1.5	40	1.0	35
DWFP-E-25x1.0x2.4	2.4	25	1.5	23	1.0	20
DWFP-E-40x0.8x2.2	2.2	40	1.5	40	0.8	40
DWFP-E-25x0.8x2.2	2.2	25	1.5	25	0.8	25
DWFP-E-18x0.8x2.2	2.2	18	1.5	18	0.8	18

Notes:

DWFP-H: High quality level (same as Tyco SMOUV)

DWFP-E: Economical Quality Level

Ribbon Fiber (mm)

Model	Splice Protection Sleeves(After Shrinking)		Fusion Tubing		Quartz or Ceramic Rod
Model	OuterDiameter (±0.2)	Length(±1)	Width x Height(±0.1)	Length(±1)	Width x Height(±0.1)	Length(±1)
DWFP-C-6core	3.7	40	3.0x1.2	40	3.0x1.5	40
DWFP-2C-6core	4.6	40	3.0x1.2	40	3.0x1.5	40
DWFP-C-12core	4.1	40	4.0x1.5	40	4.0x2.0	40
DWFP-2C-12core	5.8	40	4.0x1.5	40	4.0x2.0	40
DWFP-Q-6core	3.7	40	3.0x1.2	40	3.0x1.5	40
DWFP-2Q-6core	4.6	40	3.0x1.2	40	3.0x1.5	40
DWFP-Q-12core	4.1	40	4.0x1.5	40	4.0x2.0	40
DWFP-2Q-12core	5.8	40	4.0x1.5	40	4.0x2.0	40
