LC/PC Duplex OM3 Multimode Keystone Adapter with Inner Shutter and Flange

Short Description:

● Double the capacity, perfect space saving solution

● Small size, large capacity

● High return loss, Low insertion loss

● Push-and-pull structure, convenient for operation;

● Split zirconia (ceramic) ferrule is adopted.

● Usually mounted in a distribution panel or wall box.

● The adapters are color coded allowing easy identification of the adapter type.

● Available with single-core & multi-core patch cords and pigtails.


  • Model: DW-LPD-M3IK
  • Product Detail

    Product Tags

    Product Video

    ia_23600000024
    ia_29500000033

    Description

    Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).

    Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables.

    Insertion Lose 0.2 dB (Zr. Ceramic) Durability 0.2 dB (500 Cycle Passed)
    Storage Temp. - 40°C to +85°C Humidity 95% RH (Non Packaging)
    Loading Test ≥ 70 N Insert and Draw Frequency ≥ 500 times

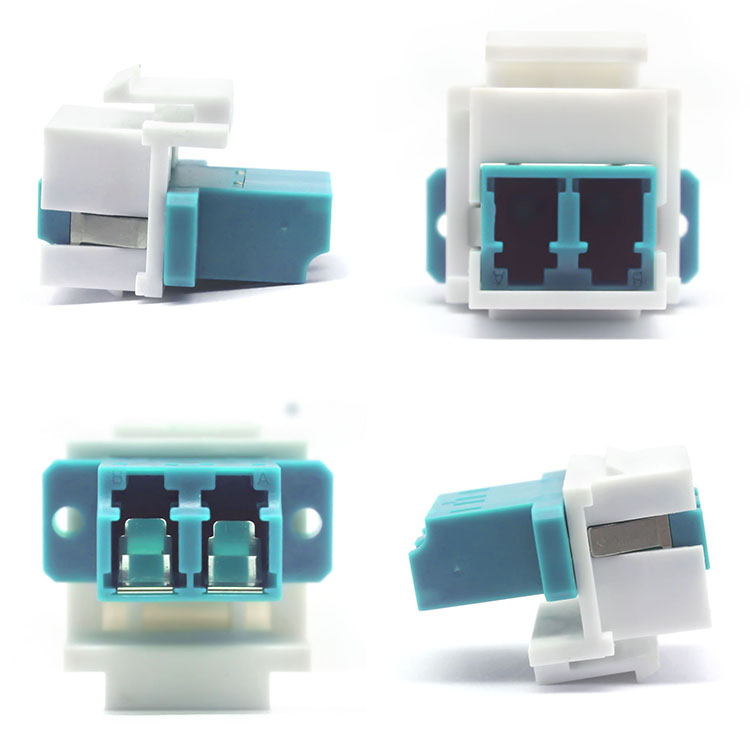

    pictures

    ia_32100000036
    ia_32100000037

    Application

    ● CATV System

    ● Telecommunications

    ● Optical Networks

    ● Testing / Measurement Instruments

    ● Fiber To the Home

    production And Testing

    ia_31900000041
