MPO ODVA Waterproof Reinforced Connection Couplers

Short Description:

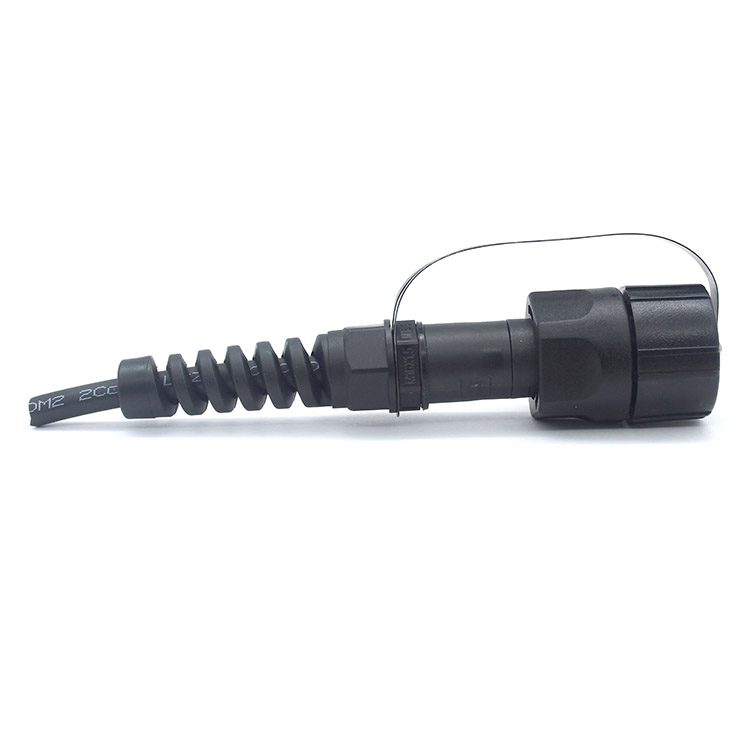

ODVA-compliant connectors specifically for harsh environment applications, such as WiMax, Long Term Evolution (LTE) and Remote Radio Heads using Fiber To The Antenna (FTTA) connectivity, which require rugged connector and cable assemblies suitable for outdoor use. Designated the MPO Series, CONEC offers the broadest ODVA-compliant fiber-optic connector portfolio in the industry, providing both full-metal and plastic versions of the IP67-rated interconnects. CONEC’s extensive ODVA-compliant product portfolio gives customers design flexibility, and ensures that FTTA systems meet telecommunication industry standards as well as harsh environment requirements. In addition, CONEC can provide cable and plug kit assembly services to deliver a complete FTTA systems interconnect solution.


  • Model: DW-ODVAM
  • Product Detail

    Product Tags

    Product Video

    ia_69300000036
    ia_68900000037

    Description

    The water-resistant SC Series connectors provide increased protection from contamination and moisture in addition to mechanical stability, temperature resistance and vibration immunity. The connectors use OFNR (optical fiber nonconductive riser) breakout cables rated for outdoor usage. The IP67-rated SC Series connector’s features a 1/6th turn bayonet coupling for a fast and secure mate/unmated, even with gloved hands. The compact SC Series connectors are also compatible with industry standard cables and interconnect products.

    Connectivity solutions for single-mode, multi-mode and APC requirements are optional.

    Pre-terminated jumper cables, including cables suitable for outdoor and indoor use in standard lengths from 1 meter to 100 meters, are also included. Custom lengths are also available.

    Parameter Standard Parameter Standard
    150 N Pull Force IEC61300-2-4 Temperature 40°C – +85°C
    Vibration GR3115 (3.26.3) Cycles 50 Mating Cycles
    Salt Mist IEC 61300-2-26 Protection Class/Rating IP67
    Vibration IEC 61300-2-1 Mechanical Retention 150 N cable retention
    Shock IEC 61300-2-9 Interface SC interface
    Impact IEC 61300-2-12 Adapter Footprint 36 mm x 36 mm
    Temperature / Humidity IEC 61300-2-22 SC Interconnect MM or SM
    Locking Style Bayonet style Tools No tools required

    Cable Parameter

    Items Specifications
    Fiber Type SM
    Fiber Count 1
    Tight-buffered Fiber Dimension 850+50um
    Material PVC or LSZH
    Color Blue/Orange
    Jacket Dimension 7.0+/-0.2mm
    Material LSZH
    Color Black

    Mechanical and Environmental Characteristics

    Items Unite Specifications
    Tension (Long Term) N 150
    Tension (Short Term) N 300
    Crush(Long Term) N/10cm 100
    Crush(Short Term) N/10cm 500
    Min. Bend Radius(Dynamic) MM 20
    Min. Bend Radius(Static) MM 10
    Operating Temperature -20~+60
    Storage Temperature -20~+60
