Visual Fault Locator with Metal Body
| Wavelength | 650nm ± 20nm | ||||
| Output Power | 1mW | 10mW | 20mW | 30mW | 50mW |
| Dynamic Distance | 2~ 5km | 8~12km | 12~15km | 18~22km | 22~30km |

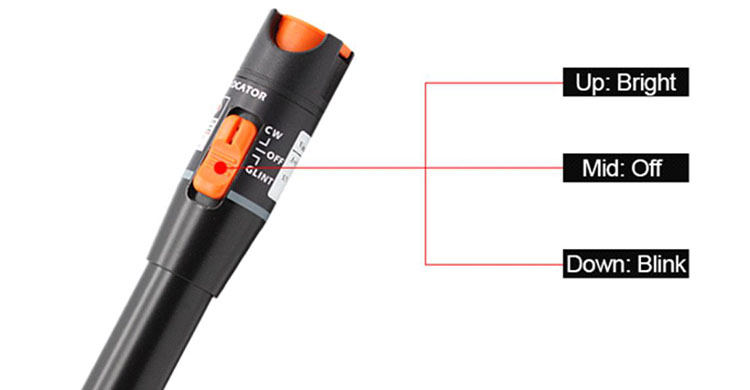

| Mode | Continuous Wave (CW) and Pulsed | Power Supply | AA * 2 | ||
| Fiber Type | SM | Connector | 2.5mm | ||
| Package Size | 210*73*30mm | Weight | 150g | ||
| Operating Temp. | -10 °C~ +50 °C, < 90%RH | Storage Temp. | 20 °C~ +60 °C, < 90%RH | ||
● Telecommunications Engineering and Maintenance
● CATV engineering and maintenance
● Cabling System
● Other fiber-optic project
